Removal

1NZ-FXE STARTING: POWER SWITCH: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD Removal
2. REMOVE REAR DECK FLOOR BOX Removal
3. REMOVE REAR NO. 3 FLOOR BOARD Removal
4. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

5. REMOVE NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY Removal
6. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal
7. REMOVE UPPER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY Removal
8. REMOVE POWER SWITCH

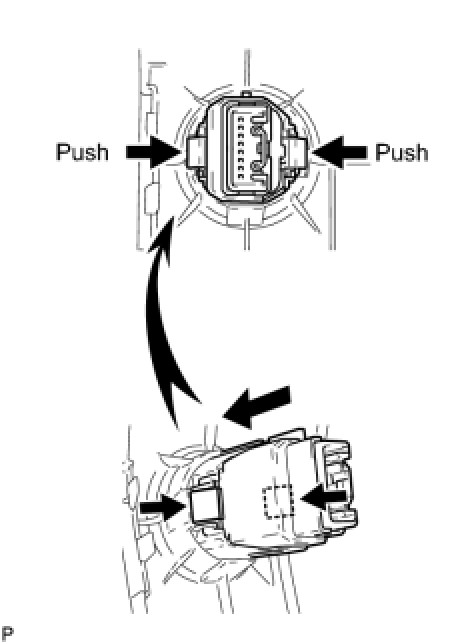

(a) Push the 2 claws and then remove the power switch.
