Inspection

1NZ-FXE STARTING: POWER SWITCH: INSPECTION

INSPECTION

1. INSPECT POWER SWITCH

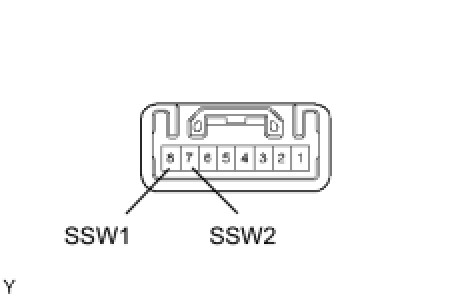

(a) Measure the resistance of the switch.

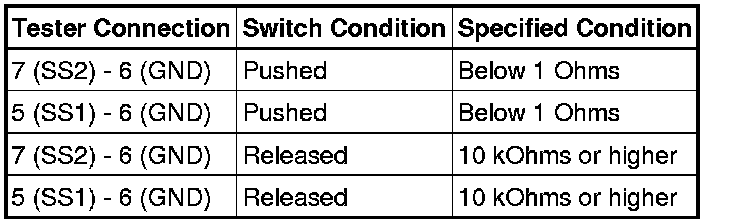

Standard resistance:





If the resistance is not as specified, replace the power switch.
