Battery System, Hybrid Drive

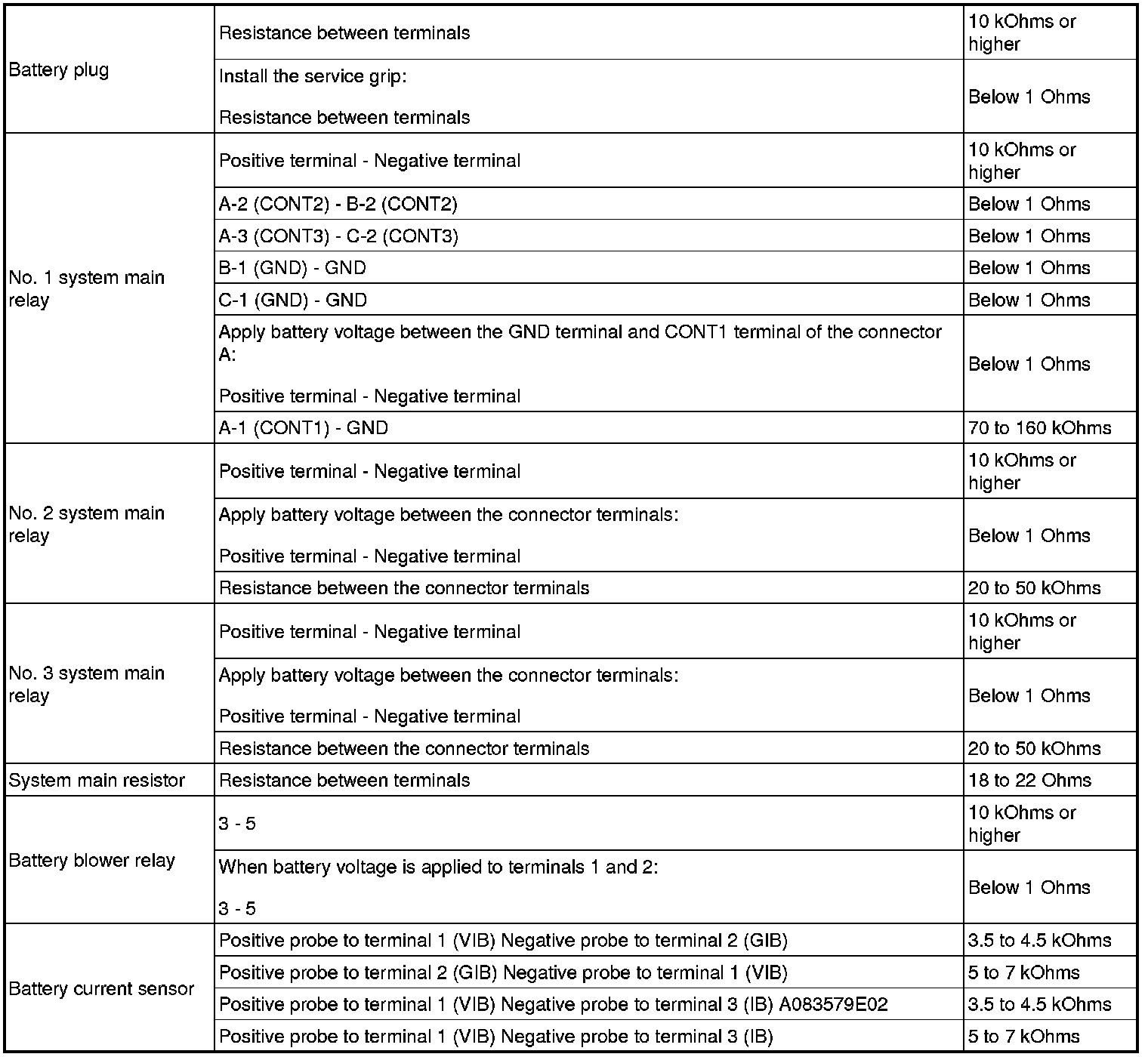

SERVICE SPECIFICATIONS: P112 HYBRID BATTERY CONTROL: SERVICE DATA

SERVICE DATA
