Seats








SERVICE SPECIFICATIONS: SEAT: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

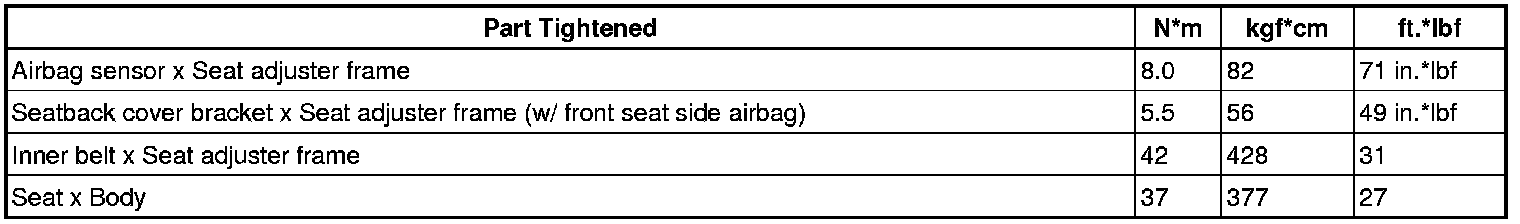

Front Seat Assembly:

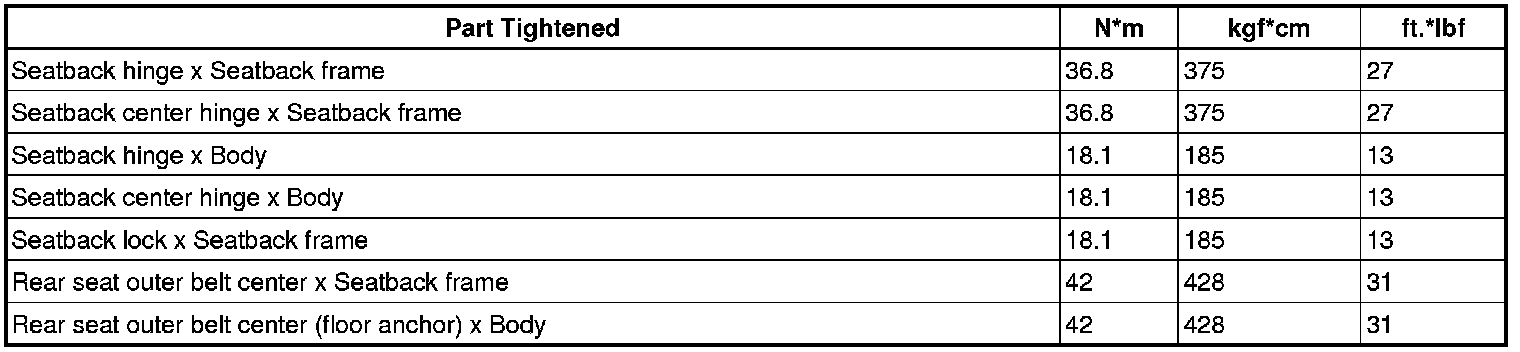

Rear Seat Assembly:
