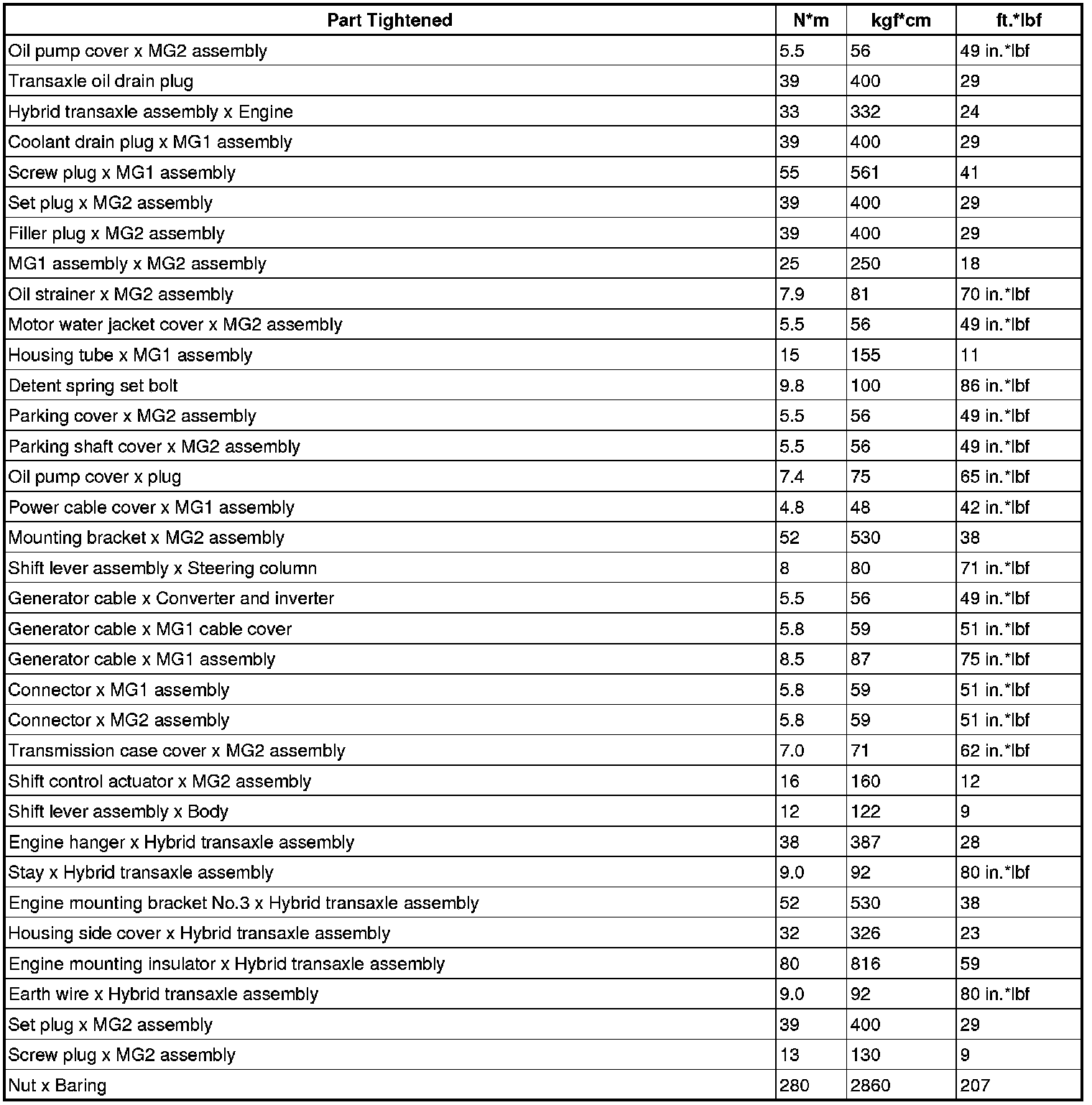

SERVICE SPECIFICATIONS: HYBRID TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS
