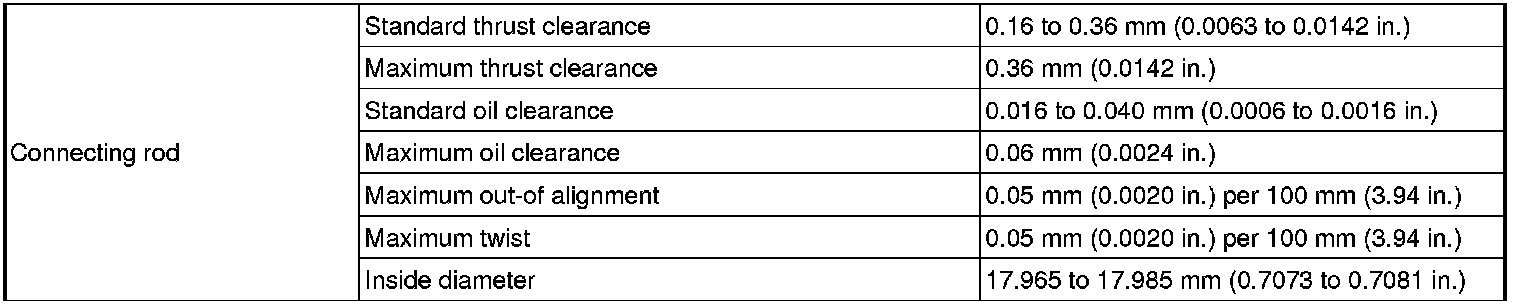

Connecting Rod, Engine

CONNECTING ROD BEARING CLEARANCE










PISTON WITH CONNECTING ROD

Torque 15 Nm (153 kgf-cm, 11 ft-lbf)





Mark the front of the connecting cap bolts with paint.
Retighten the cap bolts by 90° as shown.
Check that the crankshaft turns smoothly.
