Oil Pan, Engine

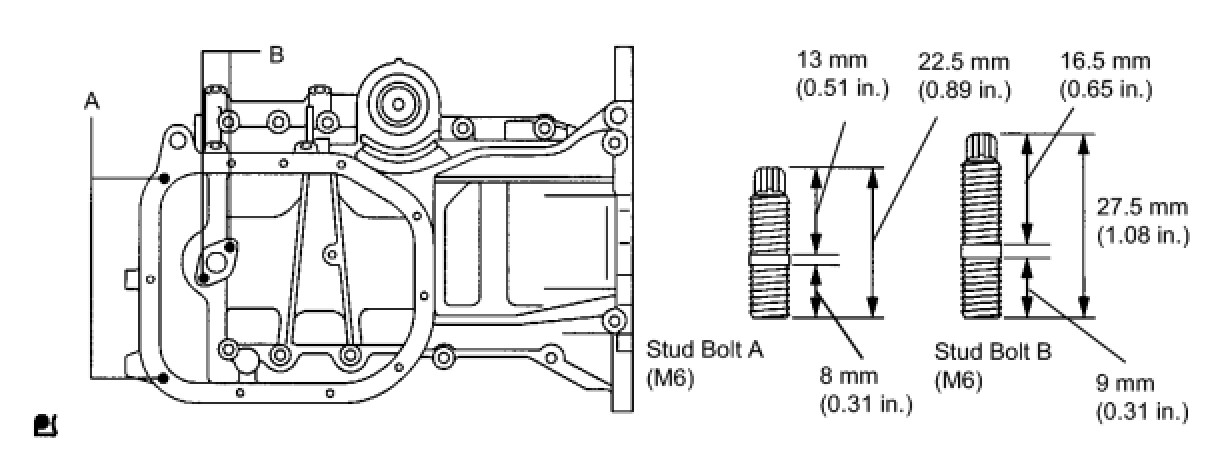

OIL PANUsing an E5 "TORX" socket, install the 4 stud bolts.
Torque 5.0 Nm (51 kgf-cm, 44 in-lbf)

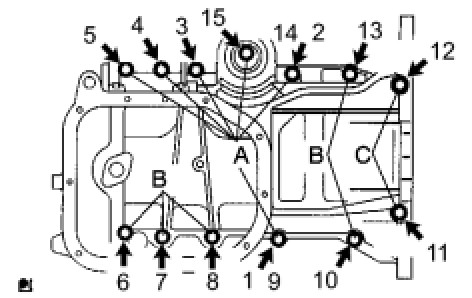

Using several steps, install and uniformly tighten the 13 bolts in the sequence shown in the illustration.
Torque 24 Nm (245 kgf-cm, 18 ft-lbf)
Each bolt length is as follows:
49 mm (1.93 in.) for bolt A
88 mm (3.47 in.) for bolt B
144 mm (5.67 in.) for bolt C
NOTICE
- Remove any oil from the contact surface.
- Install the oil pan within 3 minutes of applying seal packing.
- Do not expose the seal to engine oil for at least 2 hours after installation.
NO. 2 OIL PAN

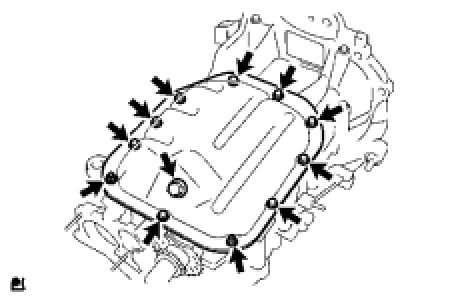

Install the No. 2 oil pan with the 9 bolts and 2 nuts.
Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)
NOTICE
- Remove any oil from the contact surface.
- Install the oil pan within 3 minutes of applying seal packing.
- Do not expose the seal to engine oil for at least 2 hours after installation.
Install the drain plug with a new gasket.
Torque 37.5 Nm (382 kgf-cm, 28 ft-lbf)
