Intake Manifold

INTAKE MANIFOLD






Install a new gasket, then install the intake manifold with the 3 bolts and 2 nuts.

Torque 20 Nm (204 kgf-cm, 15 ft-lbf)


THROTTLE BODY ASSEMBLY WITH MOTOR

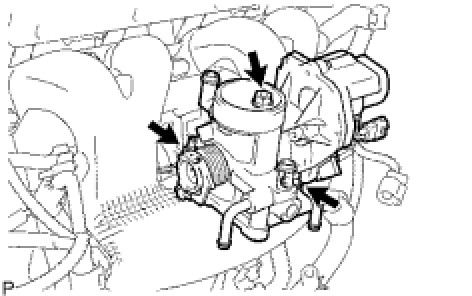

Install the throttle with motor body with the bolt and 2 nuts.
Torque 20 Nm (204 kgf-cm, 15 ft-lbf)
