Rod Bearing Cap Torque
PISTON WITH CONNECTING RODTorque 15 Nm (153 kgf-cm, 11 ft-lbf)

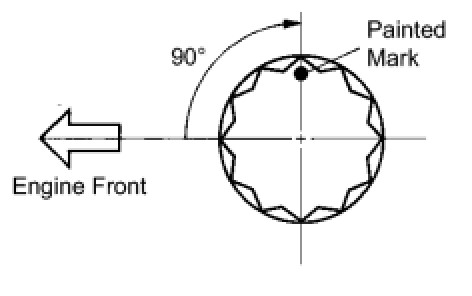

Mark the front of the connecting cap bolts with paint.
Retighten the cap bolts by 90° as shown.
Check that the crankshaft turns smoothly.
Torque 15 Nm (153 kgf-cm, 11 ft-lbf)
Mark the front of the connecting cap bolts with paint.
Retighten the cap bolts by 90° as shown.
Check that the crankshaft turns smoothly.
