Water Pump Torque and Sequence

WATER PUMP

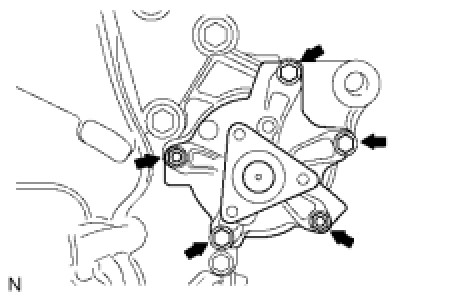

Install a new gasket and the water pump with the 3 bolts and 2 nuts.

Torque 11 Nm (112 kgf-cm, 8 ft-lbf)
