System Specifications

TIMING CHAIN COVER

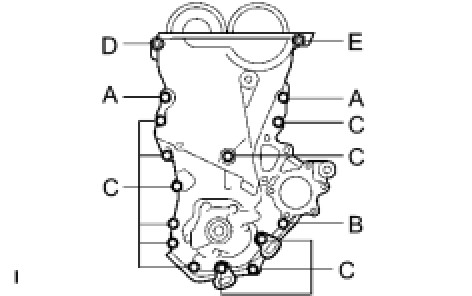

Install the oil pump assembly with the 15 bolts and nut. Uniformly tighten the bolts and nut in several steps.
Torque 32 Nm (326 kgf-cm, 24 ft-lbf)
Torque 11 Nm (112 kgf-cm, 8.1 ft-lbf)
Torque 11 Nm (112 kgf-cm, 8.1 ft-lbf)
Torque 24 Nm (245 kgf-cm, 18 ft-lbf)
Torque 24 Nm (245 kgf-cm, 18 ft-lbf)

Each bolt length is as follows:
30 mm (1.18 in.) for bolt A
35 mm (1.38 in.) for bolt B
20 mm (0.79 in.) for bolt C
20 to 14 mm (0.79 to 0.55 in.) for bolt E

CRANKSHAFT PULLEY

Torque 128 Nm (1,305 kgf-cm, 95 ft-lbf)

TIMING CHAIN TENSIONER

Install the chain tensioner with the 2 bolts.
Torque 9.0 Nm (92 kgf-cm, 80 in-lbf)
