Heating and Air Conditioning








SERVICE SPECIFICATIONS: AIR CONDITIONING: TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

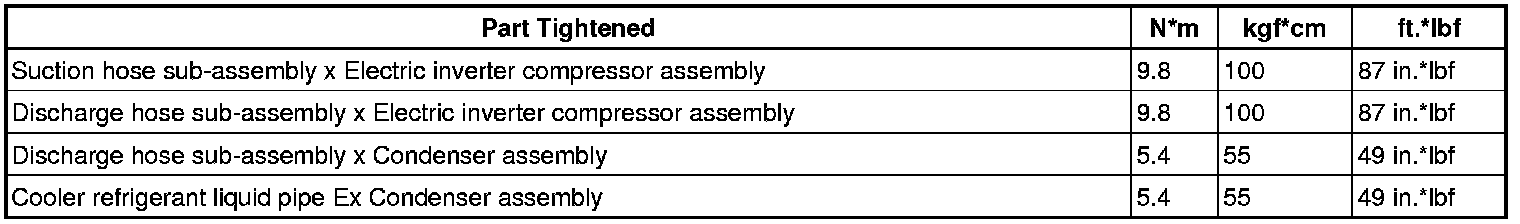

REFRIGERANT LINE





AIR CONDITIONING UNIT

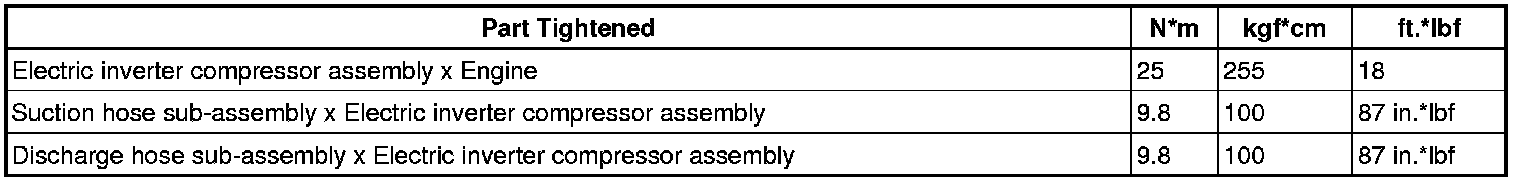

ELECTRIC INVERTER COMPRESSOR

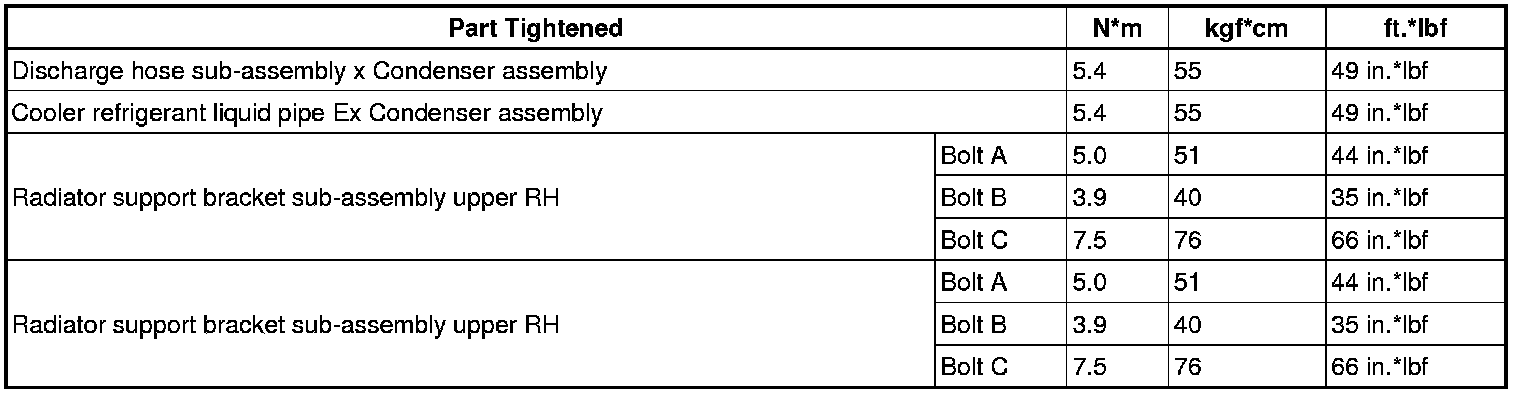

CONDENSER
