1NZ-FXE CHARGING: BATTERY: REMOVAL

REMOVAL

1. REMOVE REAR NO. 2 FLOOR BOARD

(a) Unlock the 2 washer tank cover knobs, and then remove the rear floor board.
2. REMOVE REAR DECK FLOOR BOX

(a) Remove the rear deck floor box from the vehicle.
3. REMOVE REAR NO. 3 FLOOR BOARD

(a) Detach the 4 claws, and then remove the floor board.
4. DISCONNECT BATTERY NEGATIVE CABLE

(a) Loosen the nut, and then disconnect the battery negative cable (engine wire).
5. REMOVE CONNECTOR COVER

(a) Detach the 3 claws, and then remove the connector cover.
6. REMOVE NO. 2 QUARTER VENT DUCT

(a) Disconnect the brake control power supply connector.
(b) Disconnect the 2 fusible link block connectors.
(c) Remove the wire harness from the quarter vent duct.

(d) Remove the bolt and screw, and then remove the quarter vent duct.
7. REMOVE FUSIBLE LINK BLOCK ASSEMBLY

(a) Using a clip remover, remove the clip.
(b) Loosen the nut, and then remove the fusible link block.
8. REMOVE BATTERY HOLD DOWN CLAMP

(a) Remove the bolt and nut, and then remove the battery hold down clamp.
9. REMOVE BATTERY

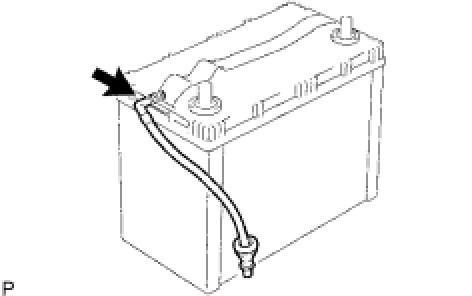

(a) Remove the grommet of the battery room ventilation hose from the vehicle.
(b) Remove the battery from the vehicle.
