Removal

OTHER SYSTEM: POWER OUTLET SOCKET: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE POWER OUTLET SOCKET ASSEMBLY

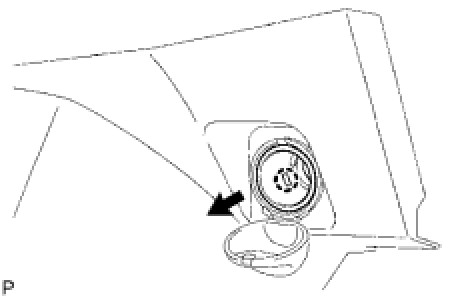

(a) Detach the claw to remove the power outlet socket.
