Installation

1NZ-FXE STARTING: KEY SLOT: INSTALLATION

INSTALLATION

1. INSTALL KEY SLOT
(a) Install the key slot with the 2 screws.





2. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY
(a) Connect the connector.

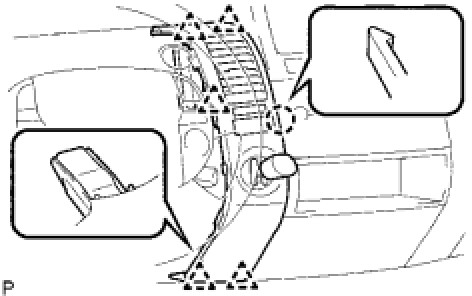

(b) Attach the claw and 5 clips to install the instrument panel register.
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
4. PERFORM INITIALIZATION
(a) Perform initialization Repair Instruction - Initialization.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
