1NZ-FXE STARTING: SMART KEY SYSTEM: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. CHECK POWER SWITCH MODE CHANGE FUNCTION
(a) Check the function of the power switch.

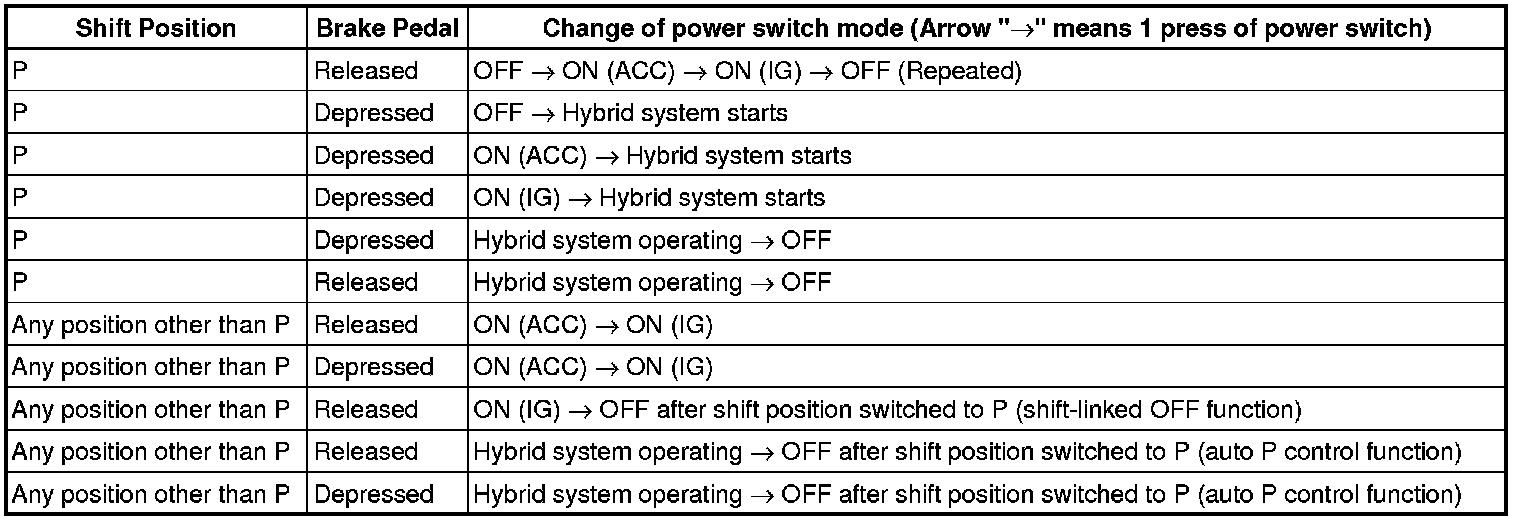

(1) Check that power switch mode changes in accordance with the conditions of the shift position and brake pedal.
HINT: For the vehicles with the smart key system (for door lock), the power switch functions not only when the key is inserted into the key slot but also when the driver carries the key.





(b) Check if power switch mode changes without pressing the power switch.
(1) With power switch mode ON (ACC) and the shift position in P, pull out the key. Check that power switch mode changes from ON (ACC) to OFF automatically.
(2) With power switch mode ON (ACC) and the shift position in P, wait for at least 1 hour. Check that power switch mode changes from ON (ACC) to OFF automatically.
2. CHECK KEY INTERLOCK FUNCTION

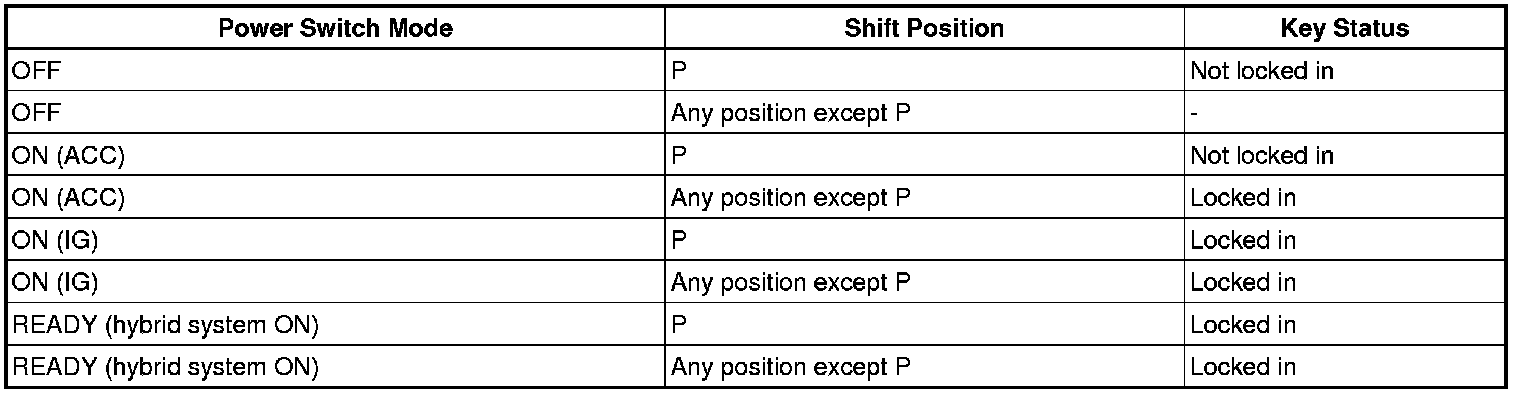

(a) Insert the key into key slot, and change power switch modes and shift position according to the table below. Check whether or not the key is locked in the key slot.






3. CHECK INDICATOR CONDITION

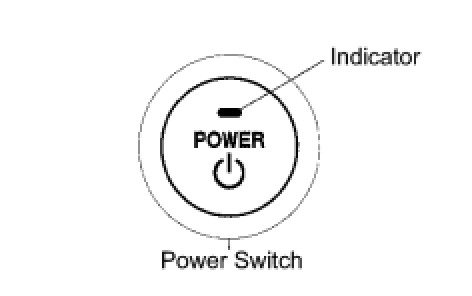

(a) Check the power indicator on the power switch.

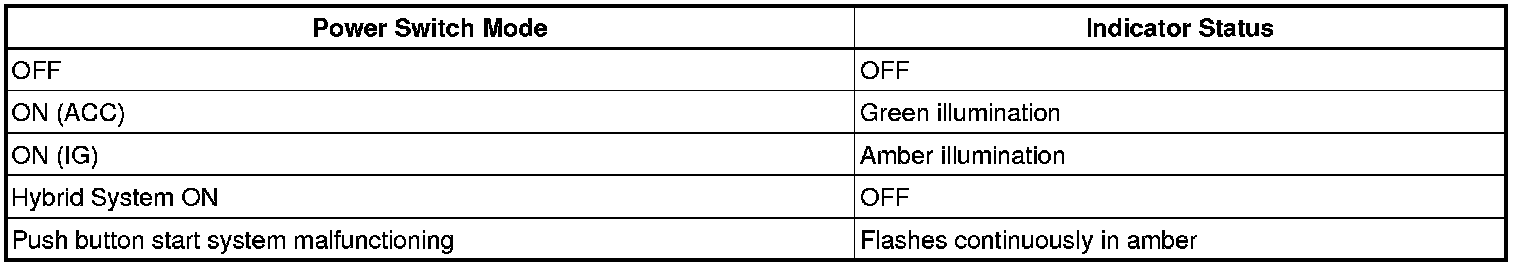

(1) Check that the power indicator illuminates and changes its color according to the table below.
