Diagnosis System

1NZ-FXE STARTING: SMART KEY SYSTEM: DIAGNOSIS SYSTEM

DIAGNOSIS SYSTEM

1. DESCRIPTION
(a) Smart key system data and its Diagnosis Trouble Codes (DTCs) can be read through the Data Link Connector 3 (DLC3). When the system seems to be malfunctioning, use Techstream to check for malfunctions and perform repairs.

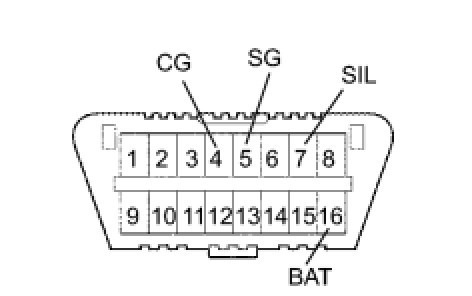

2. CHECK DLC3
HINT: The vehicle uses the ISO 15765-4 communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format.

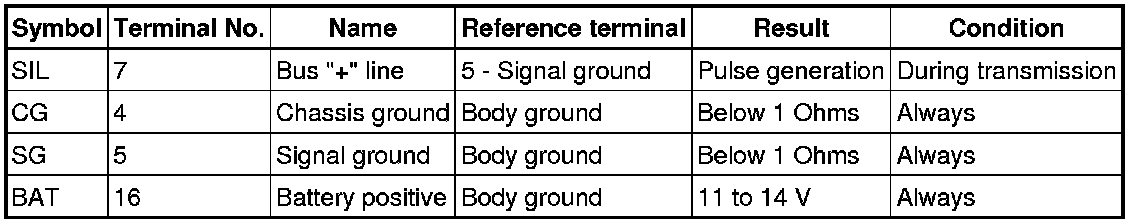

If the result is not as specified, the DLC3 may have a malfunction. Repair or replace the harness and connector.
HINT: Connect the cable of Techstream to the DLC3, turn the power switch ON (IG) and attempt to use Techstream. If the display informs that a communication error has occurred, there is a problem either with the vehicle or with the tester.
- If communication is normal when the tester is connected to another vehicle, inspect the DLC3 of the original vehicle.
- If communication is still not possible when the tester is connected to another vehicle, the problem is probably in the tester itself. Consult the Service Department listed in the tester's instruction manual.

3. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, replace the battery before proceeding.
