Disposal

TIRE AND WHEEL: TIRE PRESSURE WARNING VALVE AND TRANSMITTER: DISPOSAL

DISPOSAL
HINT: The tire pressure monitor valve is powered by a lithium battery. When disposing of the tire pressure monitor valve, remove the battery and dispose of it correctly.

1. DISPOSE OF TIRE PRESSURE WARNING VALVE SUB-ASSEMBLY

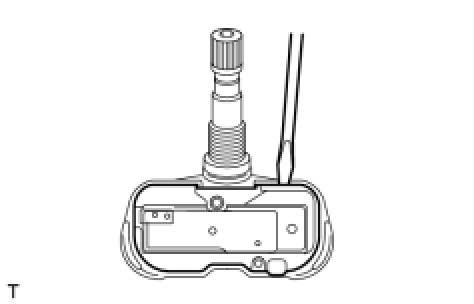

(a) Using a screwdriver, pry off the cover. Remove the back cover.

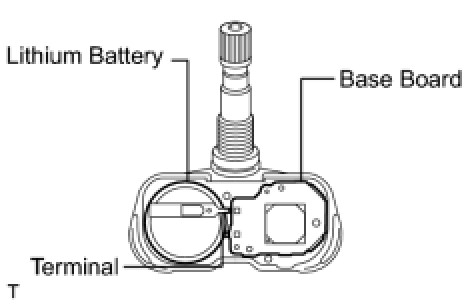

(b) The battery and base board covered with resin are exposed. While taking out the battery, cut the 2 terminals which connect the battery and base board.
