Pinout Values and Diagnostic Parameters

POWER STEERING: ELECTRONIC POWER STEERING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK POWER STEERING ECU

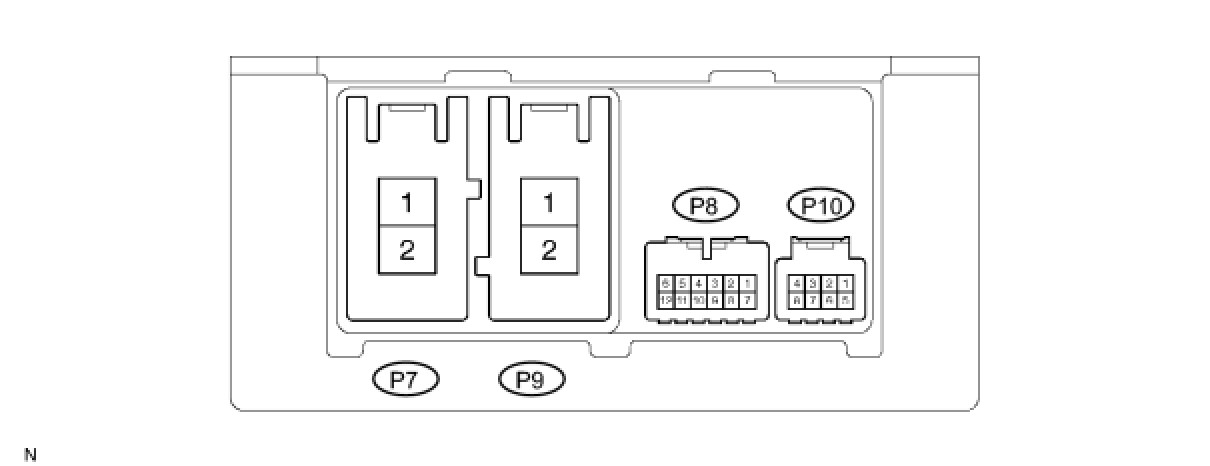

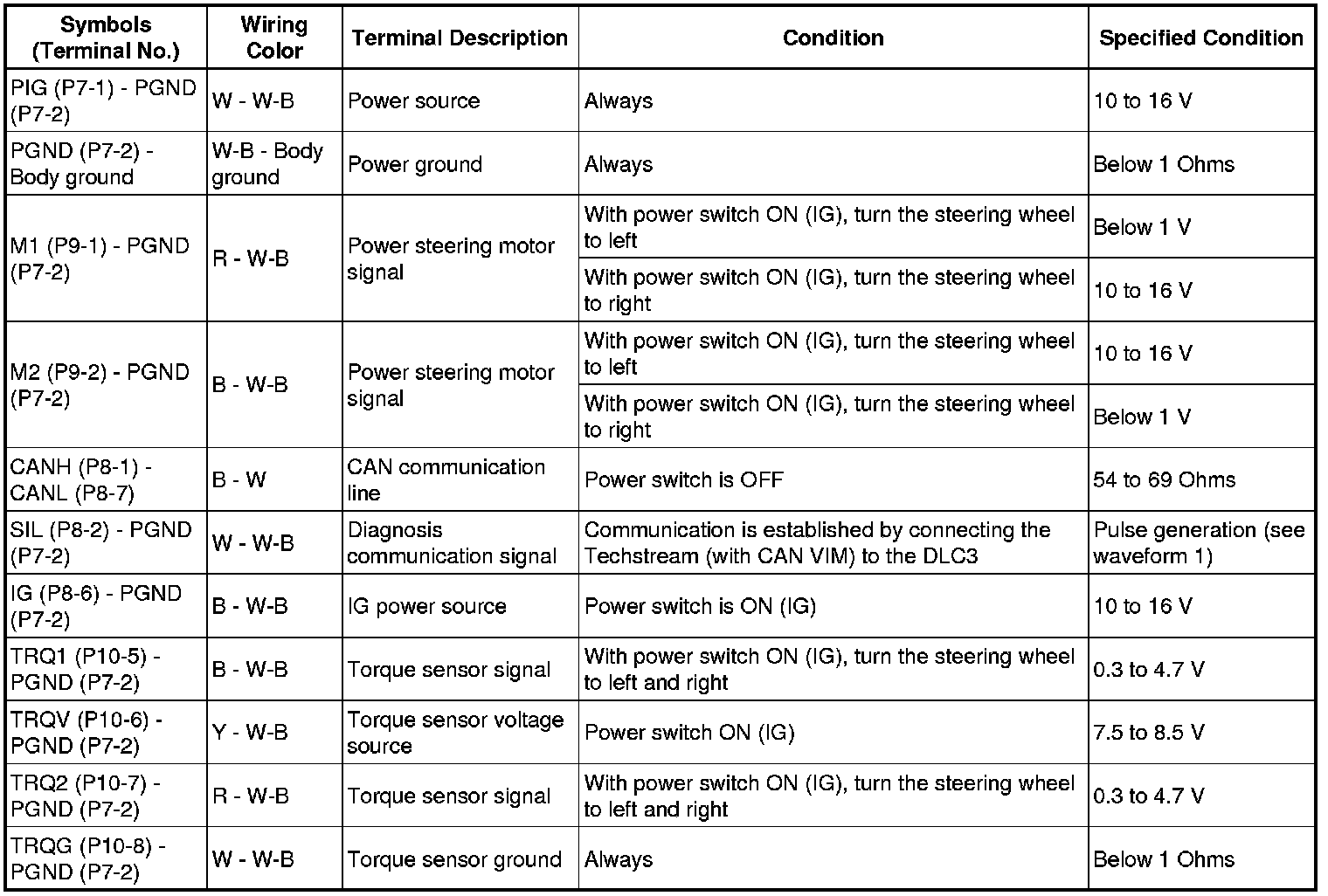

(a) Measure the voltage and resistance of the connectors.

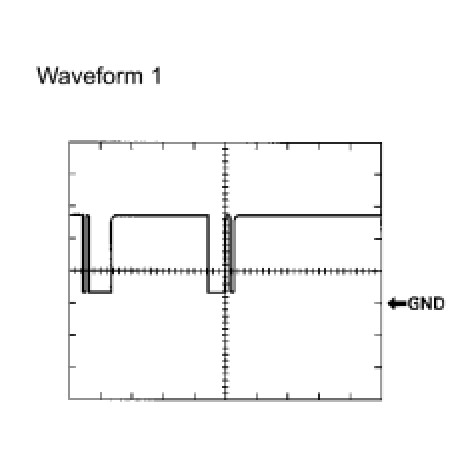

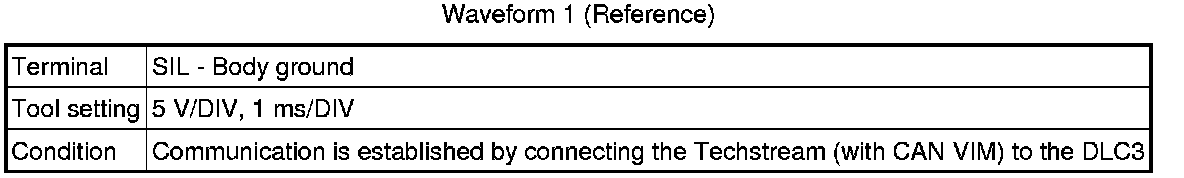

(b) Using an oscilloscope, check waveform 1.





HINT: If the result is not as specified, the ECU may have a malfunction.
