Disassembly

SUSPENSION: REAR AXLE BEAM: DISASSEMBLY

DISASSEMBLY

1. REMOVE REAR AXLE CARRIER BUSH LH

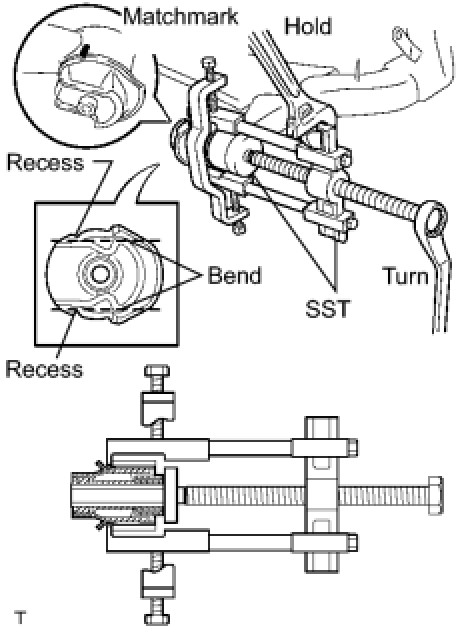

(a) Place a matchmark on the rear axle beam after aligning it with the bush recess.
(b) Make 2 bends in the rim of the bush using a chisel and hammer.
(c) Using SST, remove the bush from the rear axle beam.
SST: 09950-40011
09951-04020
09952-04010
09953-04030
09954-04020
09955-04051
09957-04010
09958-04011
SST: 09950-60010
09951-00630
NOTICE:
- Do not erase the matchmark on the rear axle beam when removing the bush.
- Apply chassis black if the rear axle beam is scratched.

2. REMOVE REAR AXLE CARRIER BUSH RH
HINT: Use the same procedures for the RH side and LH side.
