Reassembly

SUSPENSION: REAR AXLE BEAM: REASSEMBLY

REASSEMBLY

1. INSTALL REAR AXLE CARRIER BUSH LH
(a) When replacing only the bush:
(1) Temporarily install a new bush recess by aligning it with the matchmark on the rear axle beam.
NOTE: Install the bush in the same direction as before it was removed.





(b) When replacing the rear axle beam:

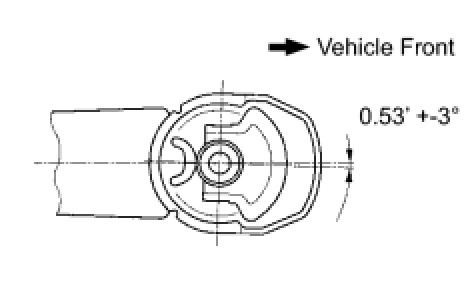

(1) Temporarily install a new bush as shown in the illustration.

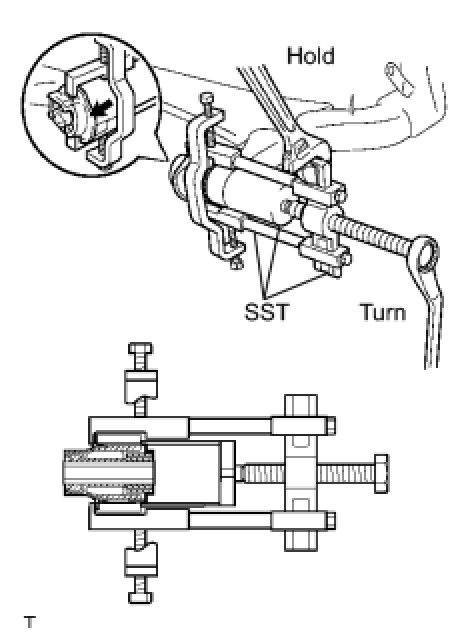

(c) Using SST, install the bush to the rear axle beam.
SST: 09950-40011
09951-04020
09952-04010
09953-04030
09954-04020
09955-04051
09957-04010
09958-04011
SST: 09950-60010
09951-00620
SST: 09710-04101
NOTICE:
- Hang the claw of SST to the bush firmly.
- Do not damage the rubber sections indicated by the arrow in the illustration when installing the bush.

2. INSTALL REAR AXLE CARRIER BUSH RH
HINT: Use the same procedures for the RH side and LH side.
