Components








SUSPENSION: FRONT SUSPENSION LOWER NO. 1 ARM: COMPONENTS

COMPONENTS

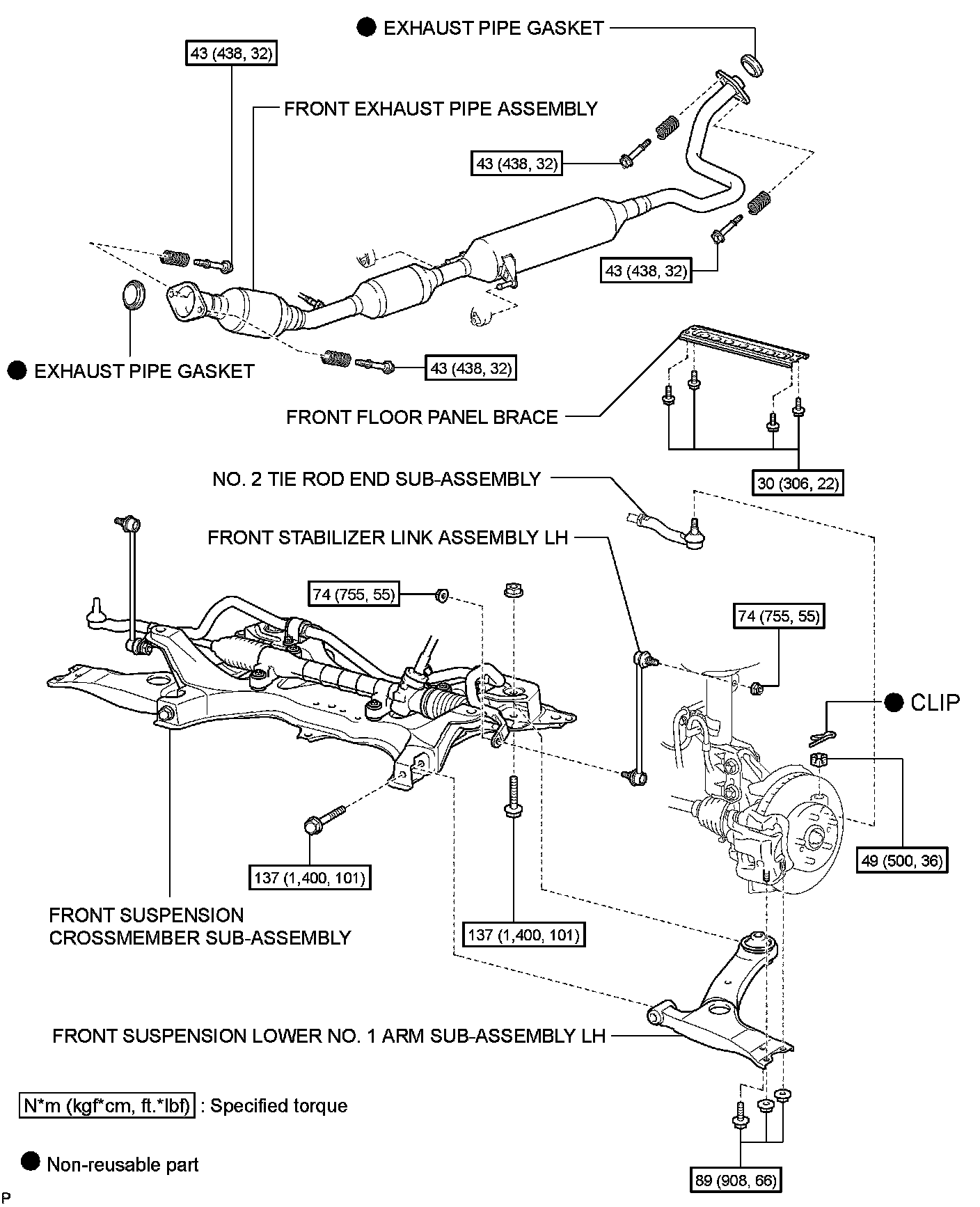

ILLUSTRATION
