Reassembly

SUSPENSION: REAR SHOCK ABSORBER WITH COIL SPRING: REASSEMBLY

REASSEMBLY

1. INSTALL REAR SHOCK ABSORBER ASSEMBLY LH

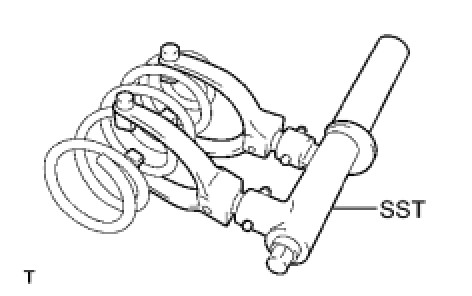

(a) Using SST, compress the coil spring.
SST: 09727-30021
09727-00010
09727-00021
09727-00031
NOTE: Do not use an impact wrench. It will damage SST.
HINT: The coil spring can also be installed/removed using the hydraulic spring compressor.

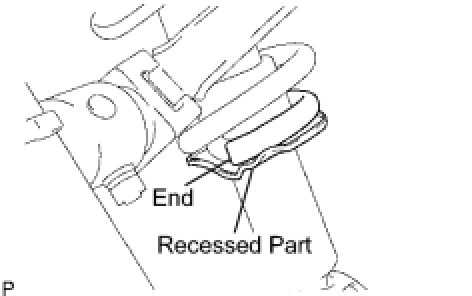

(b) Fit the coil spring end into the recessed part of the shock absorber assembly lower seat.
(c) Fit the rear coil spring insulator upper to the rear spring front bracket.





(d) Install the rear No. 1 spring bumper, rear suspension support, rear spring front bracket, No. 1 cushion and No. 1 cushion washer.
NOTICE:

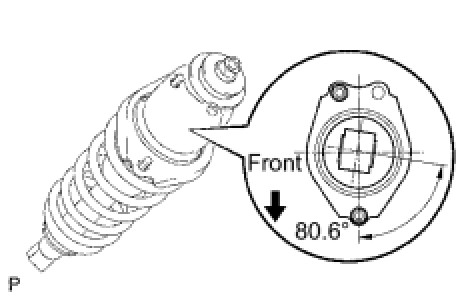

- Install the rear spring front bracket so that it is aligned with the shock absorber lower bush, as shown in the illustration.
- Install the No. 1 cushion washer with the protruding portion facing down.

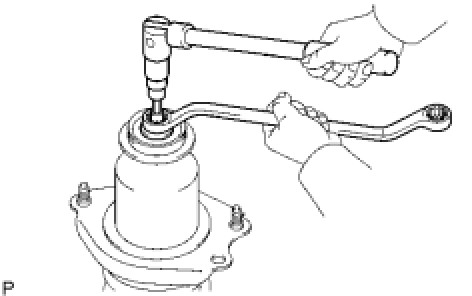

(e) Use a 6 mm socket hexagon wrench to fix the shock absorber piston rod and tighten the nut.
Torque: 56 Nm (571 kgf-cm, 41 ft-lbf)
NOTE: Sufficiently insert the hexagon wrench.

(f) Release SST and remove it from the coil spring.
NOTICE:
- Do not use an impact wrench. It will damage SST.
- Remove SST while confirming the direction of the rear spring front bracket.
