SUSPENSION: REAR SHOCK ABSORBER WITH COIL SPRING: INSTALLATION

INSTALLATION

1. INSTALL REAR SHOCK ABSORBER WITH COIL SPRING





(a) Install the rear shock absorber with coil spring to the rear axle beam. Place the spacer and temporarily tighten the nut.
(b) Install the rear shock absorber with coil spring (upper side) to the vehicle by slowly raising the rear axle beam on a jack. Insert a wooden block between the jack and the rear axle beam to prevent damage.
NOTICE:
- Do not raise the rear axle beam more than necessary.
- Securely insert the rear spring front bracket stud bolt into the vehicle.

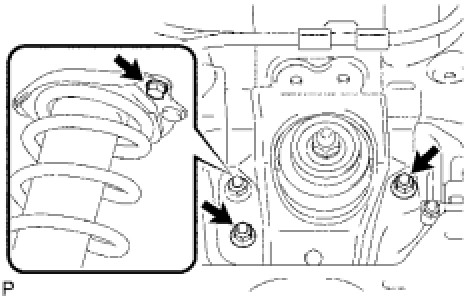

(c) Tighten the bolt and 2 nuts of the rear shock absorber with coil spring (upper side).
Torque: 80 Nm (816 kgf-cm, 59 ft-lbf)
2. INSTALL REAR WHEEL
(a) Install the rear wheel.
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
3. STABILIZE SUSPENSION
(a) After lowering the vehicle, bounce the vehicle up and down to stabilize the rear suspension.
4. FULLY TIGHTEN REAR SHOCK ABSORBER WITH COIL SPRING

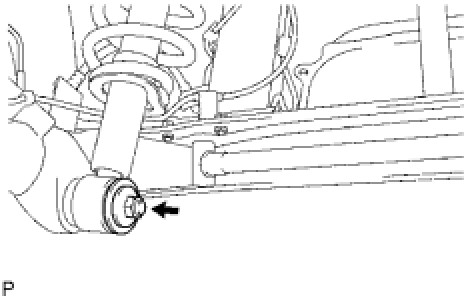

(a) Tighten the rear shock absorber with coil spring (lower side) installation nut.
Torque: 80 Nm (816 kgf-cm, 59 ft-lbf)
NOTE: Ensure the vehicle is lowered to the ground.

5. INSTALL BATTERY CARRIER BRACKET Installation
6. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation
7. INSTALL DECK FLOOR BOX LH
8. INSTALL REAR NO. 4 FLOOR BOARD
9. INSTALL REAR SIDE SEATBACK FRAME LH Installation
10. INSTALL REAR NO. 1 FLOOR BOARD Installation
11. INSTALL REAR SEATBACK ASSEMBLY LH Installation
12. INSTALL TONNEAU COVER ASSEMBLY
13. INSTALL REAR DECK TRIM COVER Installation
14. INSTALL REAR DECK FLOOR BOX
15. INSTALL REAR NO. 2 FLOOR BOARD
16. INSPECT REAR WHEEL ALIGNMENT
(a) Inspect the rear wheel alignment Service and Repair.
17. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
18. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
NOTE: Disconnect the cable from the negative (-) battery terminal for more than 2 seconds.

19. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

20. PERFORM YAW RATE SENSOR ZERO POINT CALIBRATION
HINT: Perform the yaw rate sensor zero point calibration Calibration.
