TIRE AND WHEEL: TIRE PRESSURE WARNING RESET SWITCH: INSTALLATION

INSTALLATION

1. INSTALL TIRE PRESSURE WARNING RESET SWITCH

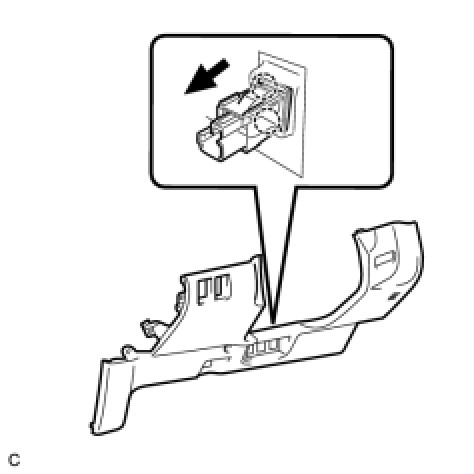

(a) Engage the 2 claws to install the tire pressure warning reset switch to the instrument panel finish panel sub-assembly lower.
2. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER Installation
3. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY Installation
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

5. INSPECT TIRE PRESSURE WARNING SYSTEM
HINT: Test Mode Procedure
