Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

CUSTOMIZE PARAMETERS
HINT: The following items can be customized.
NOTICE:
- When the customer requests a change in a function, first make sure that the function can be customized.
- Be sure to make a note of the current settings before customizing.
- When troubleshooting a function, first make sure that the function is set to the default setting.

1. AIR CONDITIONING SYSTEM

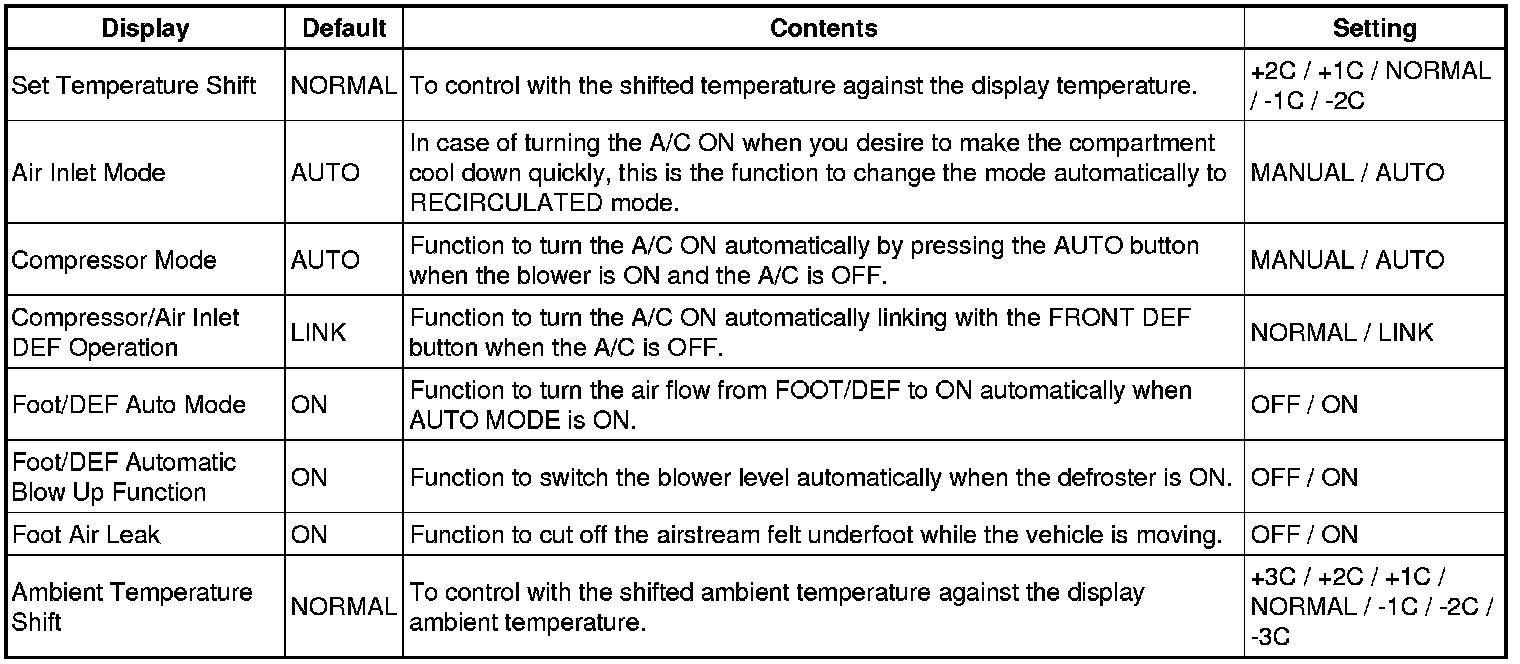

Air conditioning amplifier





2. THEFT DETERRENT SYSTEM

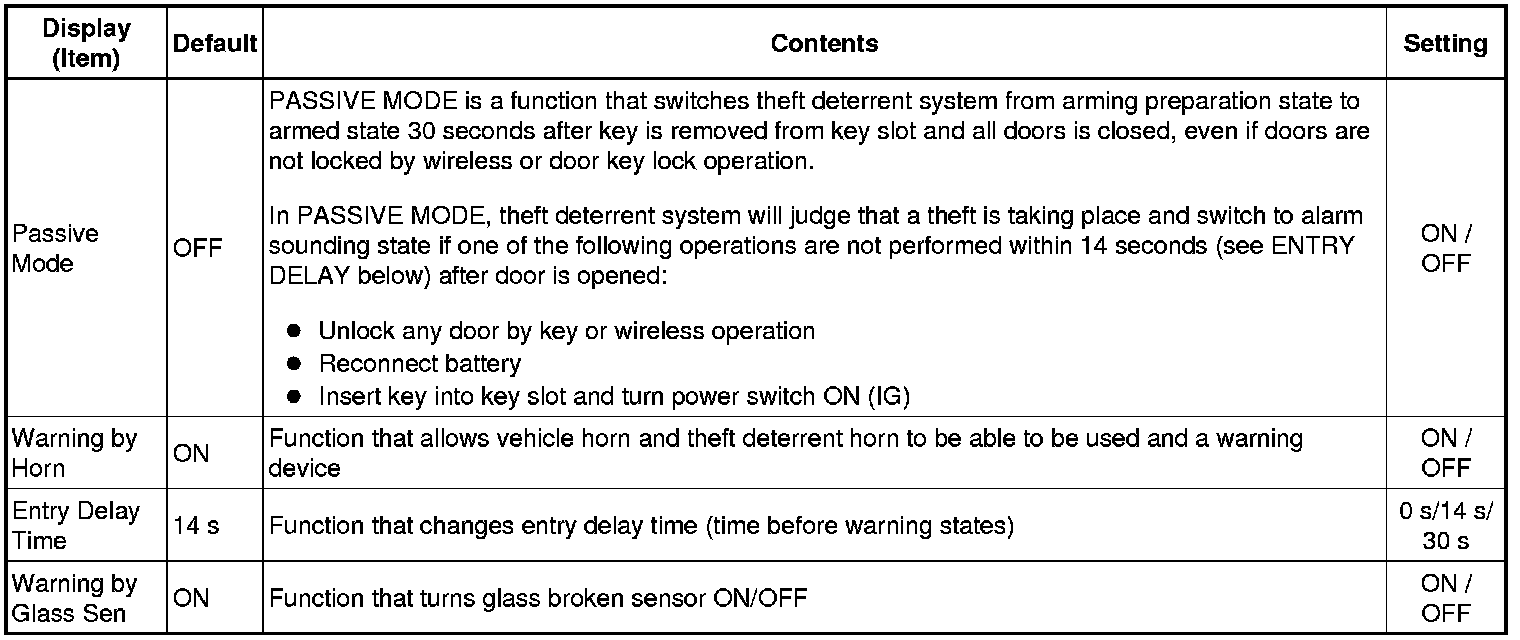

Security





3. LIGHTING SYSTEM

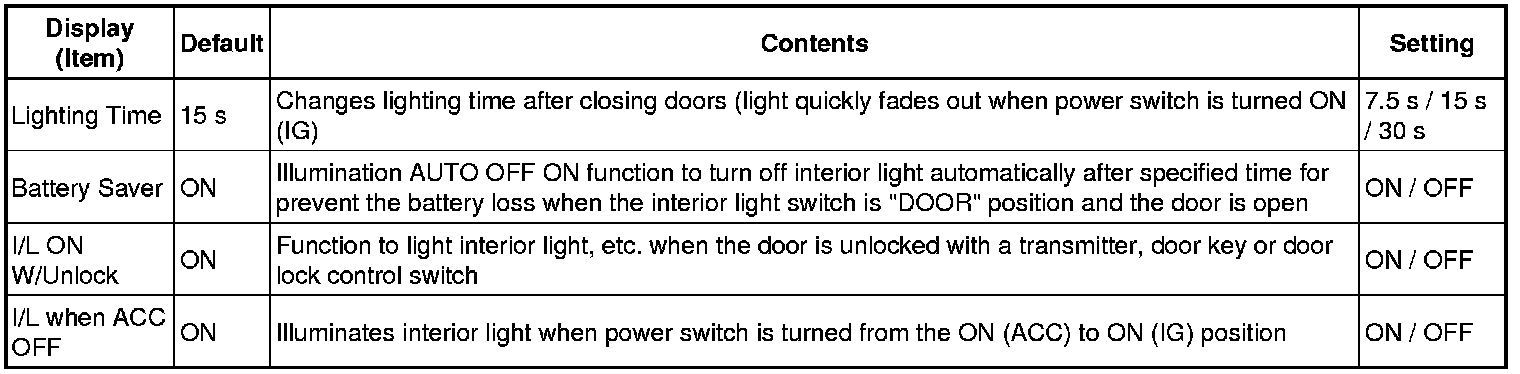

Illuminated entry

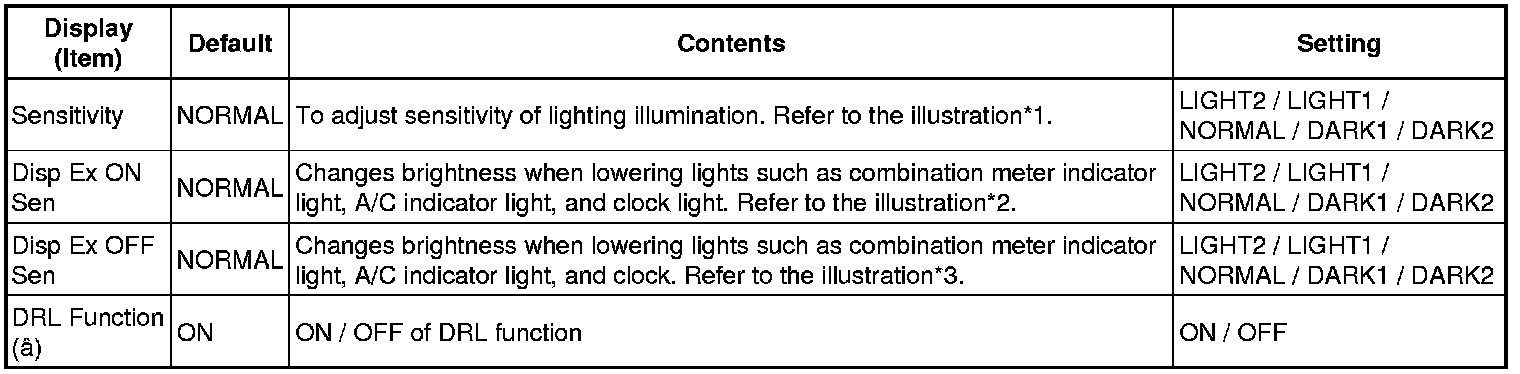

Light control





�: w/ Daytime running light

Illustration of *1





Illustration of *2





Illustration of *3





4. WIRELESS DOOR LOCK CONTROL SYSTEM (with Smart Key System)

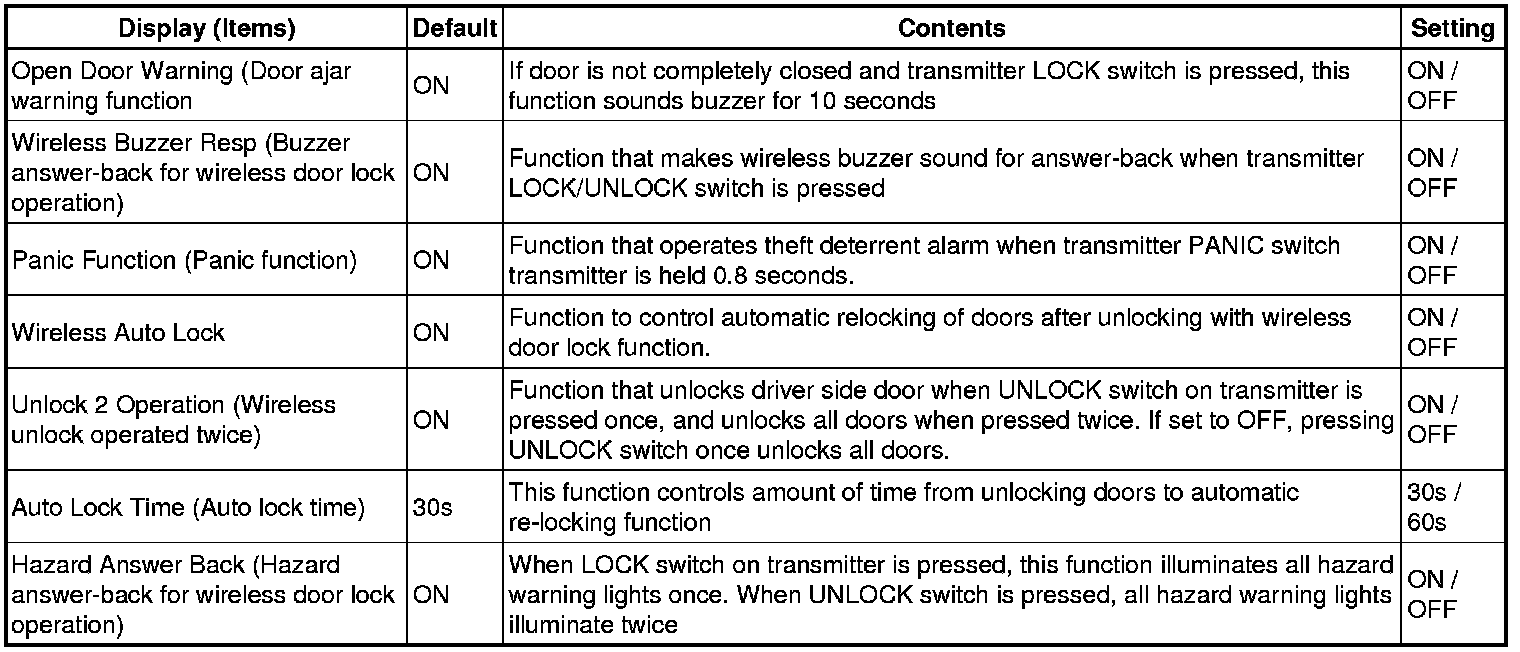

Wireless door lock control system:





5. WIRELESS DOOR LOCK CONTROL SYSTEM (without Smart Key System)

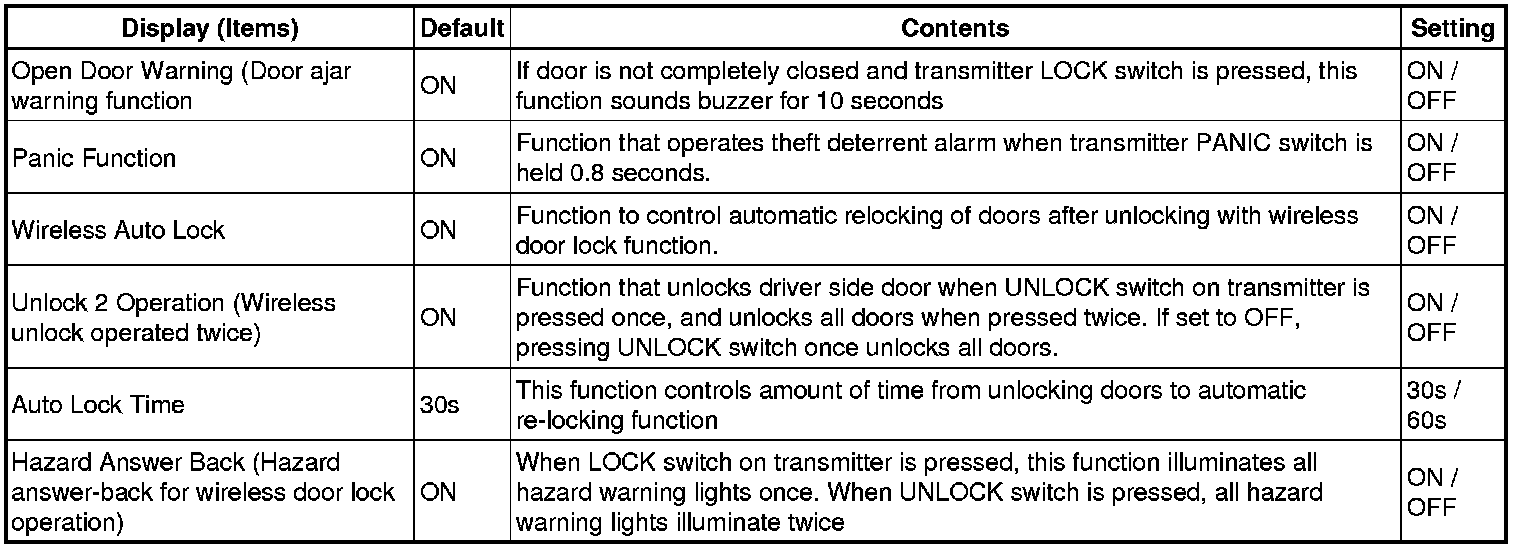

Wireless door lock control system:





6. SMART KEY SYSTEM

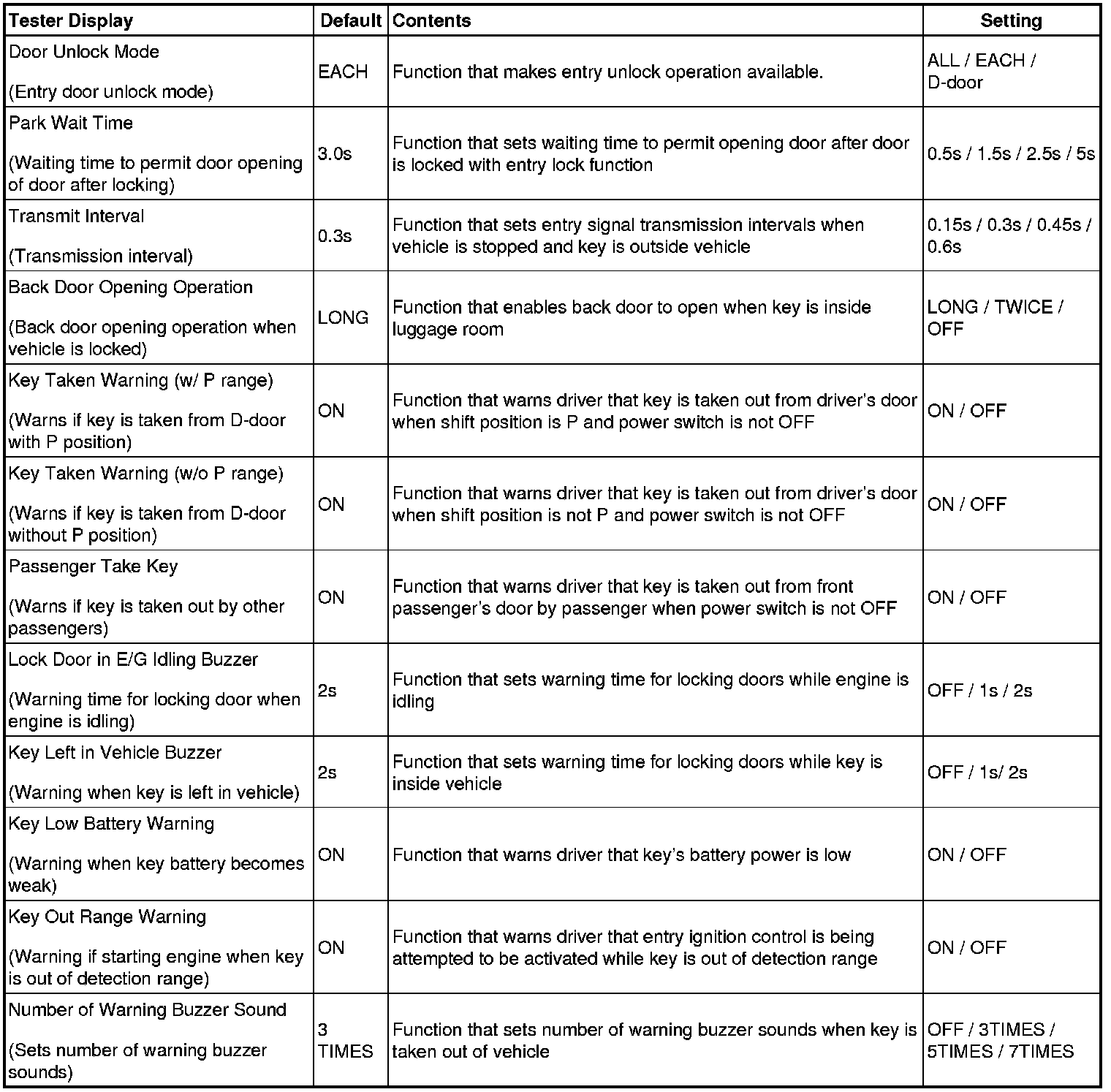

Smart Key System





7. METER / GAUGE SYSTEM
NOTE: Basically, these buzzers should be set on for safety driving. However, only if it is necessary to set the buzzer off for some reason, perform the following procedures.

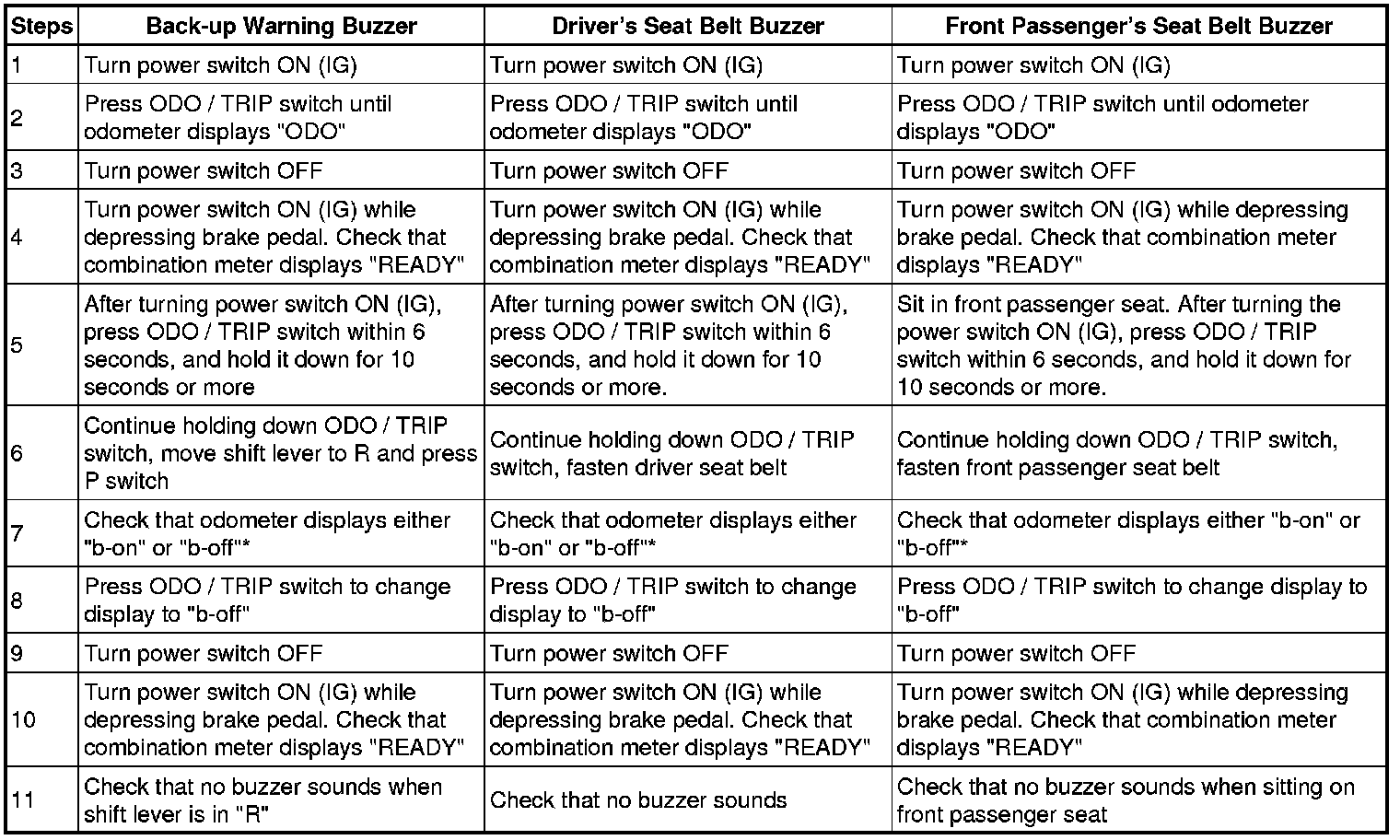

Procedure





HINT: *: "b-off" indicates that the buzzer is OFF. "b-on" indicates that the buzzer is ON. The buzzer cancel setting will be finished (the odometer will display "ODO") if the ODO / TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that buzzer cancel setting is complete. If it is not complete, start from step 1 again.
NOTE: When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.
