Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Prius L4-1.5L (1NZ-FXE) Hybrid
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Continuously Variable Transmission/Transaxle
>>
Relays and Modules - CVT
>>
Control Module
>>
Locations

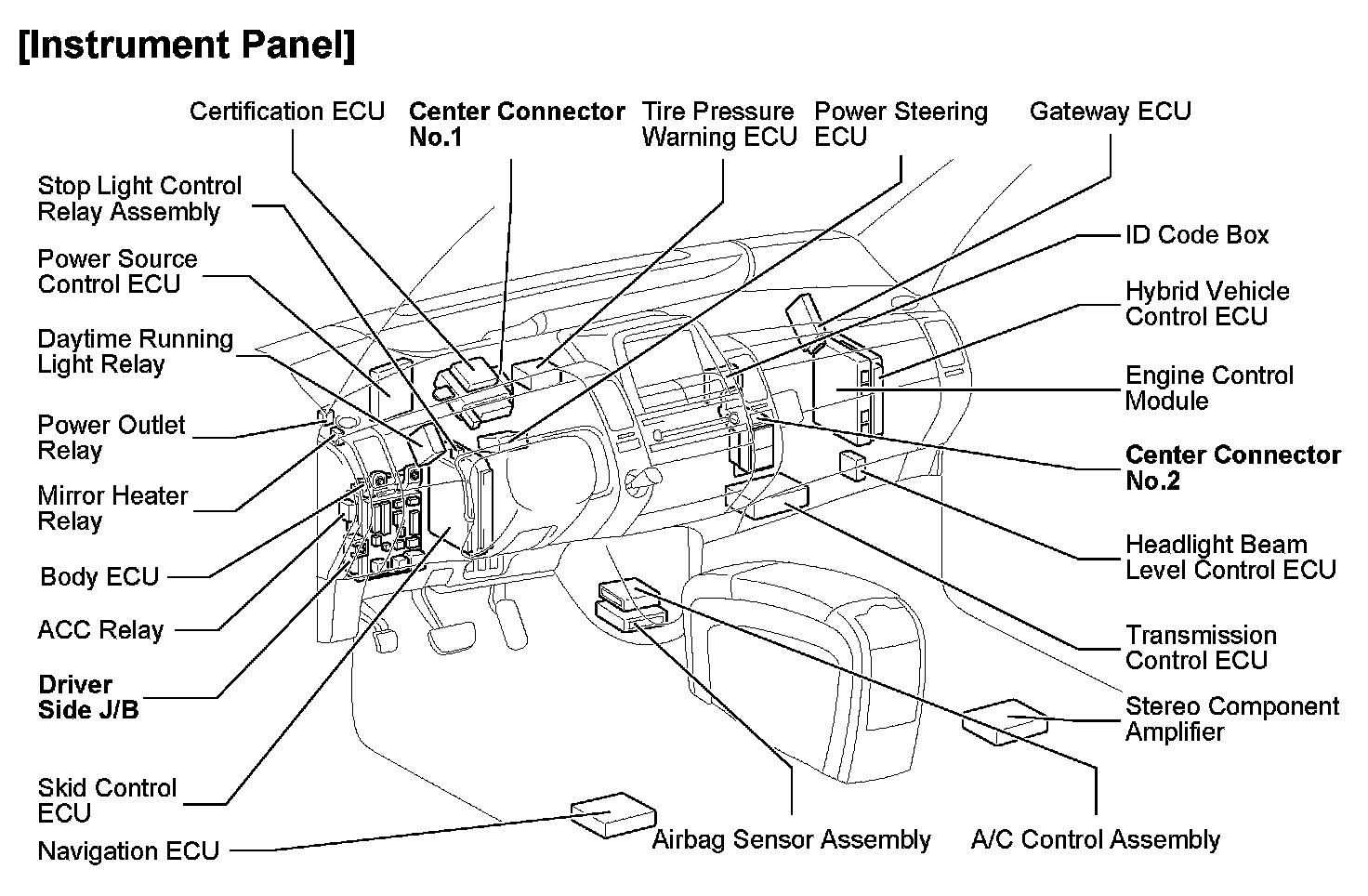

Control Module: Locations
Instrument Panel:
