Disassembly

HYBRID TRANSMISSION / TRANSAXLE: DIFFERENTIAL CASE: DISASSEMBLY

DISASSEMBLY

1. REMOVE DIFFERENTIAL CASE LH TAPERED ROLLER BEARING

(a) Set the differential case in a vise.

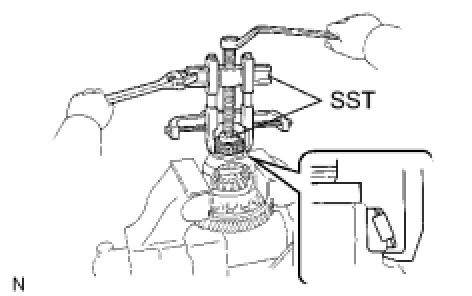

(b) Using SST, remove the bearing RH from the differential case.
SST: 09950-40011
09951-04010
09952-04010
09953-04020
09954-04010
09955-04061
09958-04011
NOTE: Apply oil or equivalent to the ends and screw portions of SST.

2. REMOVE DIFFERENTIAL CASE RH TAPERED ROLLER BEARING

(a) Set the differential case in a vise.

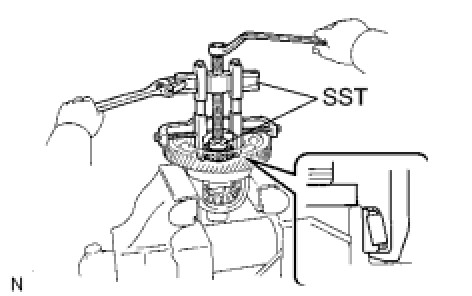

(b) Using SST, remove the bearing LH from the differential case.
SST: 09950-40011
09951-04010
09952-04010
09953-04020
09954-04010
09955-04061
09958-04011
3. REMOVE DIFFERENTIAL CASE

(a) Set the differential case in a vise.

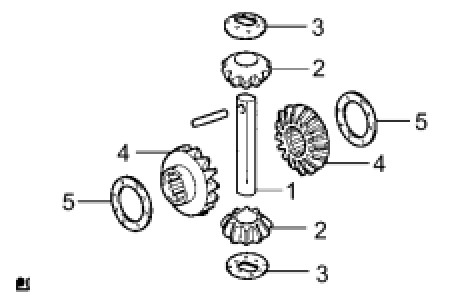

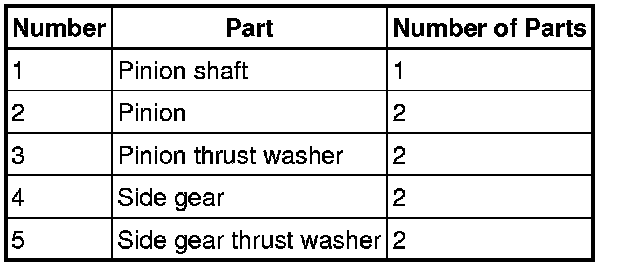

(b) Tap out the straight pin from the differential case with a 5 mm pin punch.
