Disassembly

HYBRID TRANSMISSION / TRANSAXLE: DIFFERENTIAL DRIVE PINION: DISASSEMBLY

DISASSEMBLY

1. REMOVE COUNTER DRIVE GEAR RADIAL BALL BEARING





(a) Loosen the staked part of the nut.





(b) Set the differential drive pinion in a vise and remove the nut using a deep socket wrench.
HINT: Set the drive pinion in a vise as shown in the illustration.

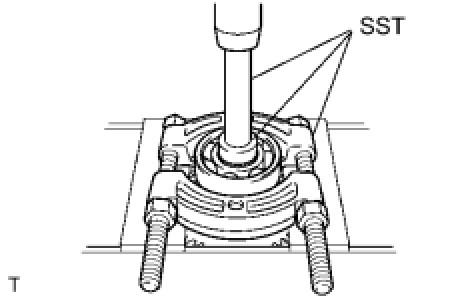

(c) Using SST and a press, press out the bearing from the differential driver pinion.
SST: 09527-10011
SST: 09950-00020
SST: 09950-60010
09951-00360
SST: 09950-70010
09951-07100

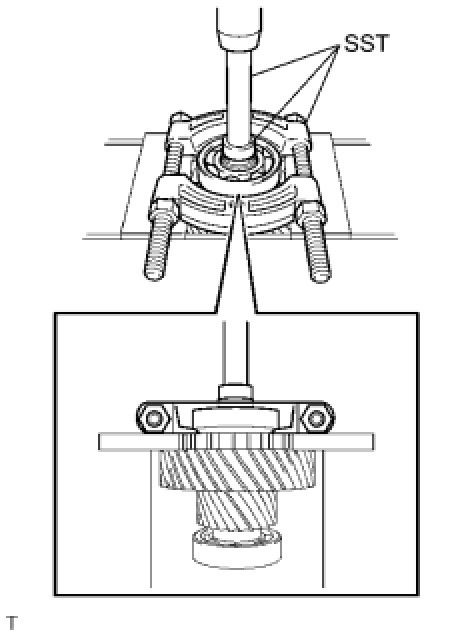

(d) Using SST and a press, press out the bearing from the differential drive pinion.
SST: 09527-10011
SST: 09950-00020
SST: 09950-60010
09951-00360
SST: 09950-70010
09951-07100
