HYBRID TRANSMISSION / TRANSAXLE: DIFFERENTIAL DRIVE PINION: REASSEMBLY

REASSEMBLY

1. INSTALL COUNTER DRIVE GEAR RADIAL BALL BEARING

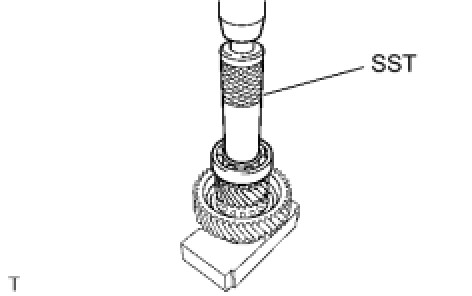

(a) Using SST and a press, press in the bearing to the differential drive pinion.
SST: 09608-06041

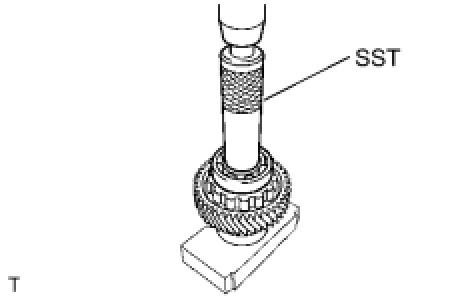

(b) Using SST and a press, press in the bearing to the differential drive pinion.
SST: 09608-06041
SST: 09950-60010
09951-00370





(c) Set the differential drive pinion in a vise and tighten a new nut using a deep socket wrench.
Torque: 280 Nm (2,860 kgf-cm, 207 ft-lbf)

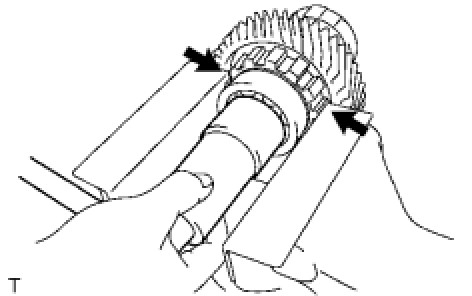

HINT: Set the vise as shown in the illustration.

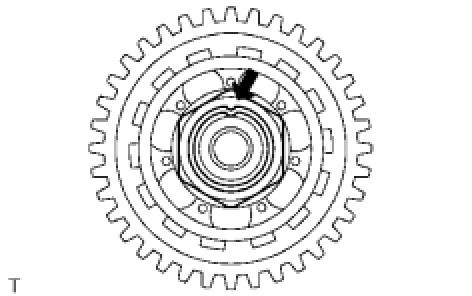

(d) Stake the nut.
