Reassembly

HYBRID TRANSMISSION / TRANSAXLE: TRANSMISSION DRIVE SPROCKET: REASSEMBLY

REASSEMBLY

1. INSTALL TRANSMISSION DRIVE SPROCKET SUB-ASSEMBLY

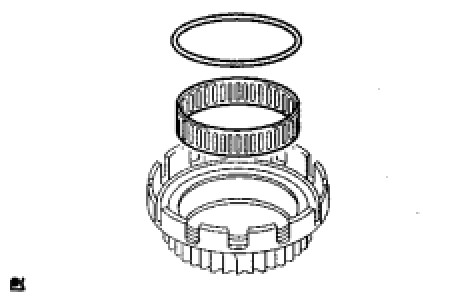

(a) Apply ATF WS to the sliding surfaces of the bearing and install the needle roller bearing to the transmission drive sprocket.
(b) Install the spacer to the transmission drive sprocket.

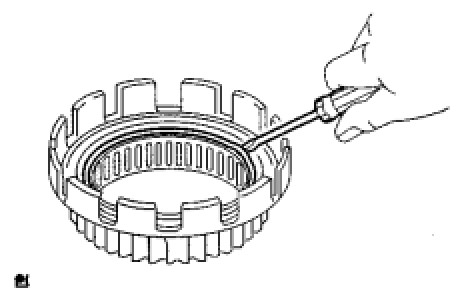

(c) Using a thin screwdriver, install the snap ring to the transmission drive sprocket.
