Disassembly

HYBRID TRANSMISSION / TRANSAXLE: INPUT SHAFT: DISASSEMBLY

DISASSEMBLY

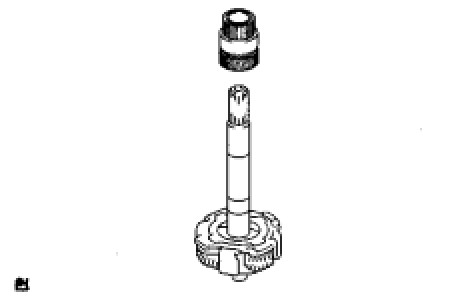

1. REMOVE PLANETARY SUN GEAR SUB-ASSEMBLY





(a) Remove the planetary sun gear from the input shaft.
2. REMOVE INPUT SHAFT THRUST BEARING RACE

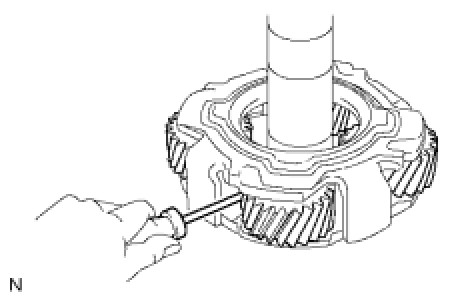

(a) Float the input shaft thrust bearing race using a thin flat-head screwdriver if it is attached to the planetary sun gear.

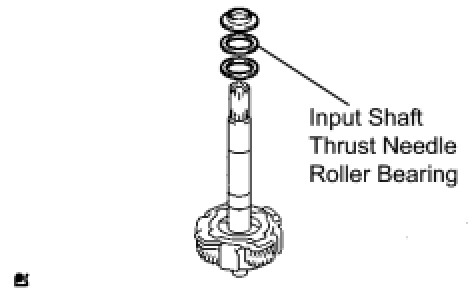

(b) Remove the 2 input shaft thrust bearing races and input shaft thrust needle roller bearing.
