Reassembly

HYBRID TRANSMISSION / TRANSAXLE: INPUT SHAFT: REASSEMBLY

REASSEMBLY

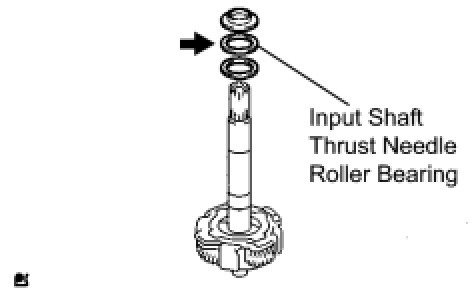

1. INSTALL INPUT SHAFT THRUST BEARING RACE





(a) Apply ATF WS to the sliding surfaces of the bearing and install the 2 input shaft thrust bearing races and input shaft thrust needle roller bearing.

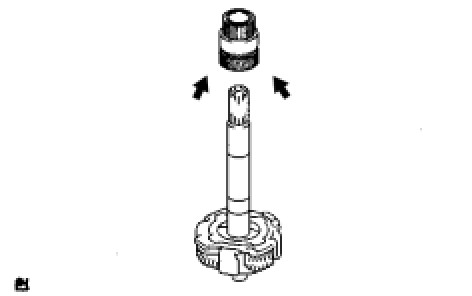

2. INSTALL PLANETARY SUN GEAR SUB-ASSEMBLY





(a) Apply ATF WS to the bush and install the planetary sun gear to the input shaft.
