Disassembly

HYBRID TRANSMISSION / TRANSAXLE: SHIFT LEVER: DISASSEMBLY

DISASSEMBLY

1. REMOVE INDICATOR LIGHT WIRE SUB-ASSEMBLY

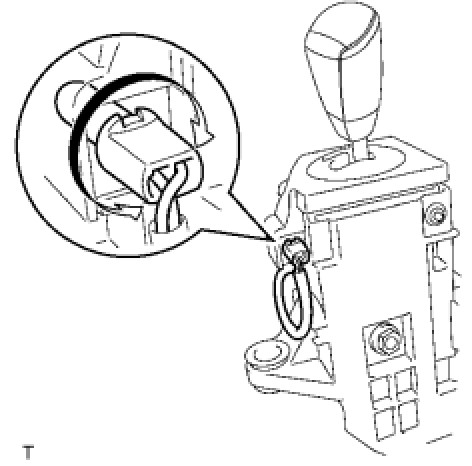

(a) Remove the position indicator light wire from the position indicator housing.





(b) Remove the cover.

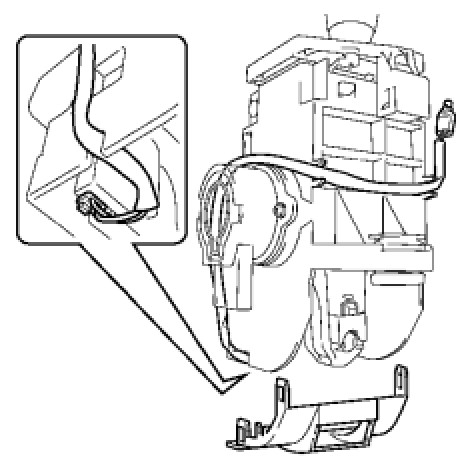

(c) Disconnect the connector from the 3 clamps and remove the position indicator light wire.

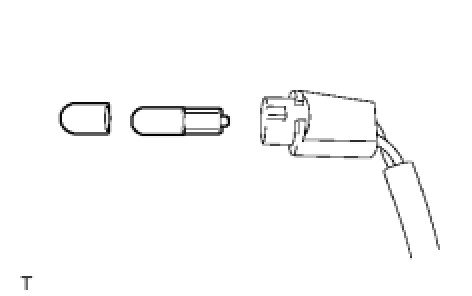

(d) Remove the bulb and cap from the position indicator light wire.
