Disassembly

HYBRID TRANSMISSION / TRANSAXLE: SPROCKET DRIVEN GEAR AND COUNTER DRIVE GEAR: DISASSEMBLY

DISASSEMBLY

1. REMOVE COUNTER DRIVE GEAR RADIAL BALL BEARING

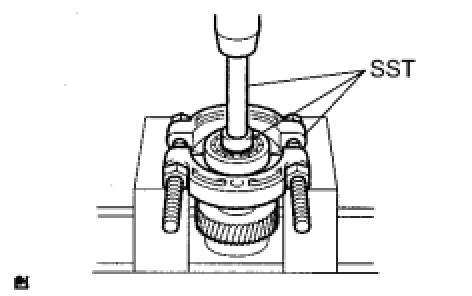

(a) Using SST and a press, press out the bearing from the counter drive gear.
SST: 09950-00020
SST: 09950-60010
09951-00330
SST: 09950-70010
09951-07100

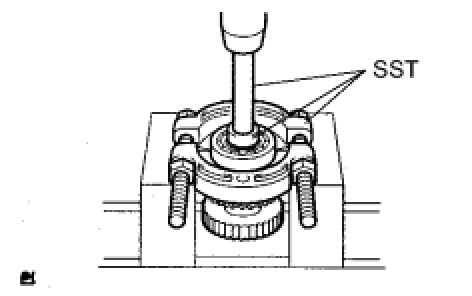

(b) Using SST and a press, press out the bearing from the counter drive gear.
SST: 09950-00020
SST: 09950-60010
09951-00330
SST: 09950-70010
09951-07100
