Reassembly

HYBRID TRANSMISSION / TRANSAXLE: SPROCKET DRIVEN GEAR AND COUNTER DRIVE GEAR: REASSEMBLY

REASSEMBLY

1. INSTALL COUNTER DRIVE GEAR RADIAL BALL BEARING
(a) Apply ATF WS to the 2 bearings.

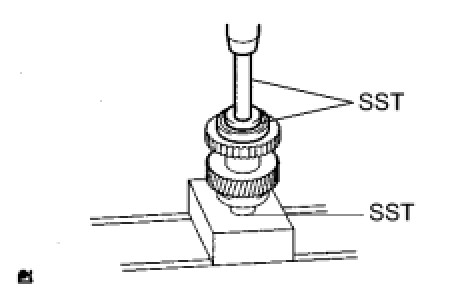

(b) Using SST and a press, press in the bearing to the counter drive gear.
SST: 09950-60010
09951-00330
09951-00460
SST: 09950-70010
09951-07100

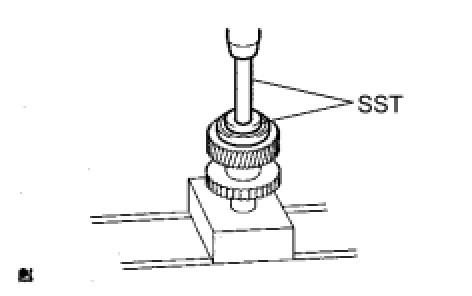

(c) Using SST and a press, press in the bearing to the counter drive gear.
SST: 09950-60010
09951-00330
09951-00460
SST: 09950-70010
09951-07100
