Installation

HYBRID TRANSMISSION / TRANSAXLE: OIL PUMP DRIVE SHAFT: INSTALLATION

INSTALLATION

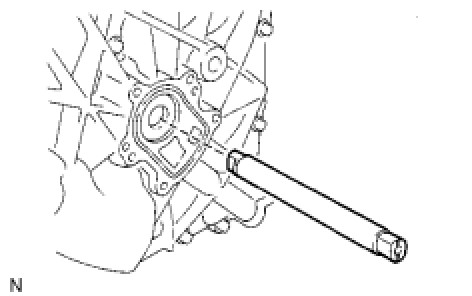

1. INSTALL OIL PUMP DRIVE SHAFT





(a) Apply ATF WS to the oil pump drive shaft and install it to the hybrid vehicle transaxle.
HINT: Use genuine ATF WS.

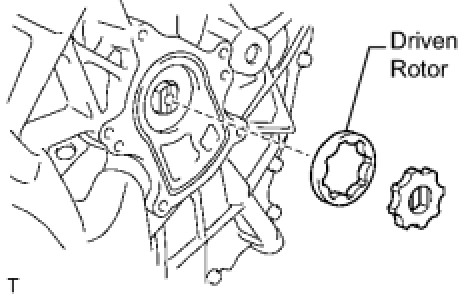

2. INSTALL OIL PUMP DRIVEN ROTOR





(a) Apply ATF WS to the oil pump driven rotor and install it to the hybrid vehicle transaxle.
HINT: Use genuine ATF WS.

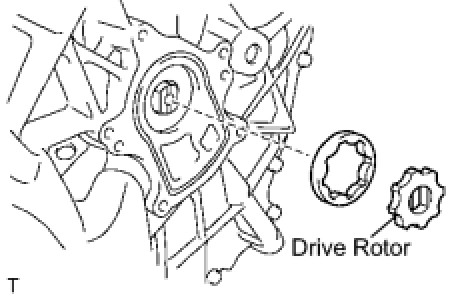

3. INSTALL TRANSAXLE OIL PUMP DRIVE ROTOR





(a) Apply ATF WS to the oil pump drive rotor and install it to the hybrid vehicle transaxle.
HINT: Use genuine ATF WS.

4. INSTALL TRANSMISSION OIL PUMP COVER SUB-ASSEMBLY

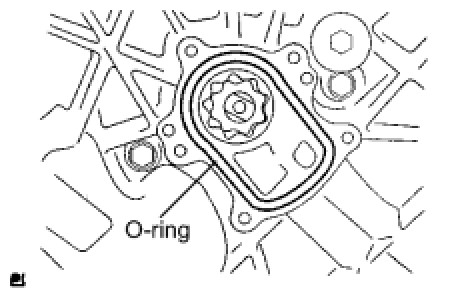

(a) Install a new O-ring to the hybrid transaxle.
NOTE: Do not twist the O-ring when installing it.





(b) Apply adhesive to the first 2 or 3 threads of the bolt end.
Adhesive:
Toyota Genuine Adhesive 1344,
Three Bond 1344 or equivalent
NOTE: Clean and degrease the bolts and bolt holes.

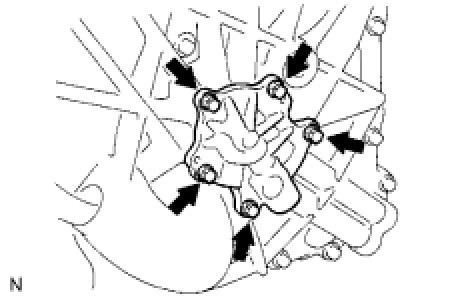

(c) Install the oil pump cover with the 5 bolts.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
5. INSTALL FRONT WHEEL
6. ADD TRANSAXLE OIL
Fluid type:
Toyota genuine ATF WS
Standard capacity
3.8 liters (4.0 US qts, 3.3 Imp. qts)
7. INSPECT TRANSAXLE OIL
(a) Inspect transaxle oil Hybrid Transaxle System.
8. INSTALL ENGINE UNDER COVER LH
