Drive Sprocket

HYBRID TRANSMISSION / TRANSAXLE: TRANSMISSION DRIVE SPROCKET: INSPECTION

INSPECTION

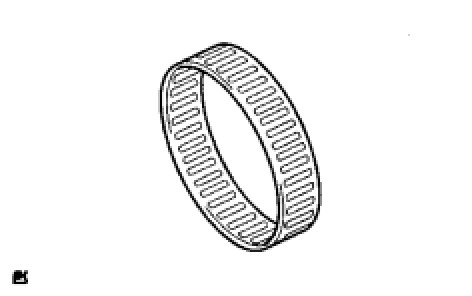

1. INSPECT NO. 2 DRIVE SPROCKET NEEDLE ROLLER BEARING





(a) Check the bearing for abnormal wear or discoloration.
HINT: Replace the needle roller bearing with a new one if abnormal wear or discoloration is found.
