Input Shaft

HYBRID TRANSMISSION / TRANSAXLE: INPUT SHAFT: INSPECTION

INSPECTION

1. INSPECT PLANETARY SUN GEAR SUB-ASSEMBLY
(a) Ensure that there is no damage or color change in the bush.

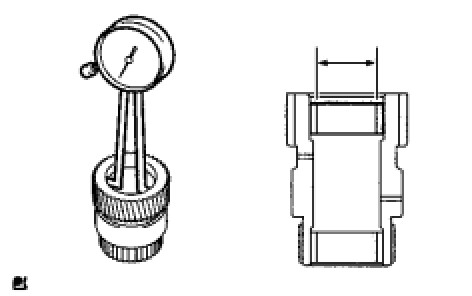

(b) Using a caliper gauge, inspect the internal diameter of the planetary gear.









Maximum diameter:
25.596 mm (1.0077 in.)
NOTE: Measure the diameter in a number of locations and use the average of the measurements taken.
HINT: Replace the planetary sun gear with a new one if the measurement exceeds the maximum diameter.

2. INSPECT INPUT SHAFT THRUST NEEDLE ROLLER NO. 1 BEARING





(a) Ensure that there is no abnormal wear or discoloration in the bearing.
HINT: Replace the input shaft thrust needle roller bearing with a new one if there is abnormal wear or discoloration.
