Inspection

HYBRID TRANSMISSION / TRANSAXLE: HYBRID VEHICLE TRANSAXLE UNIT: INSPECTION

INSPECTION

1. INSPECT HV MOTOR ASSEMBLY





(a) Inspect the inside diameter of the rotor bush.

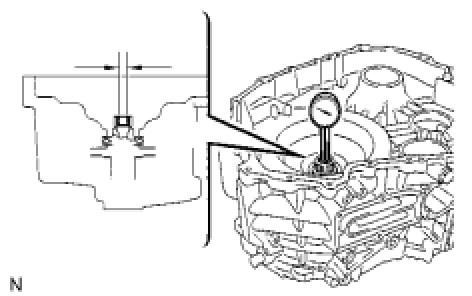

(1) Using a caliper gauge, measure the inside diameter of the motor rotor bush.
Standard diameter:
20.025 to 20.046 mm (0.7884 to 0.7892 in.)
Maximum diameter:
20.096 mm (0.7912 in.)
NOTE: Take the measurement in different locations and use the average of the measurements taken.

If the inside diameter exceeds the maximum, replace the motor assembly with a new one.
