On-Vehicle Inspection

HYBRID TRANSMISSION / TRANSAXLE: HYBRID VEHICLE TRANSAXLE: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

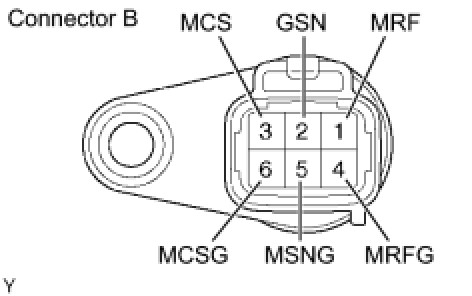

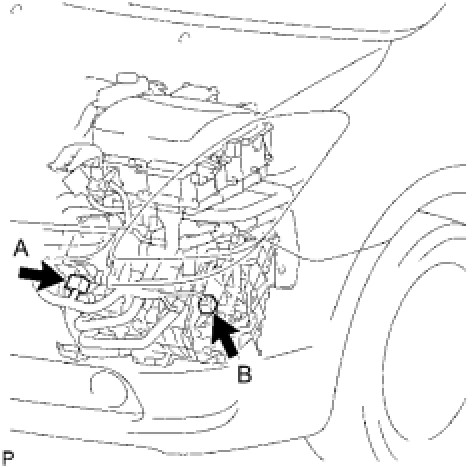

1. INSPECT SPEED SENSOR (RESOLVER)





(a) Using an ohmmeter, measure the resistance between the terminals.

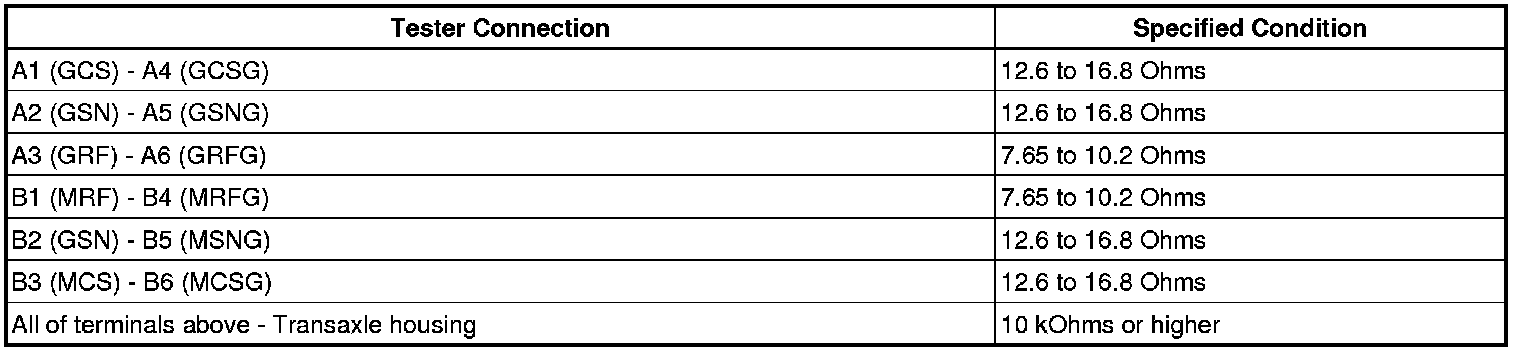

Standard resistance:





If the results are not as specified, replace the hybrid vehicle transaxle assembly.

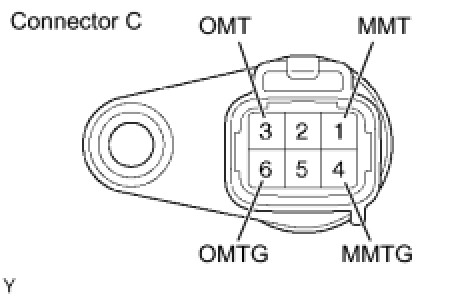

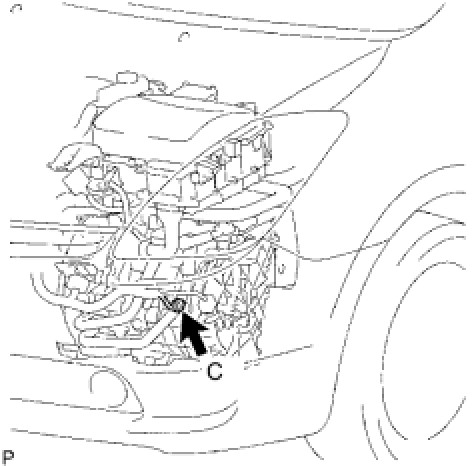

2. INSPECT TEMPERATURE SENSOR





(a) Using an ohmmeter, measure the resistance between the terminals.

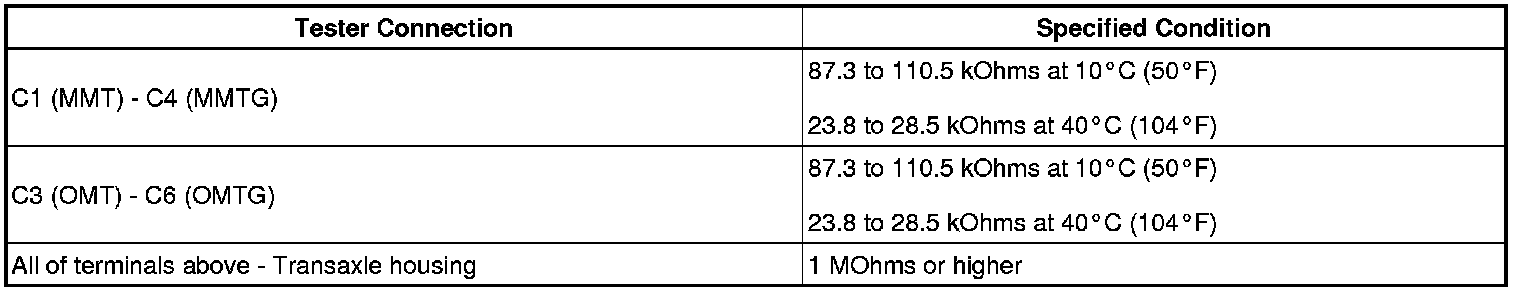

Standard resistance:

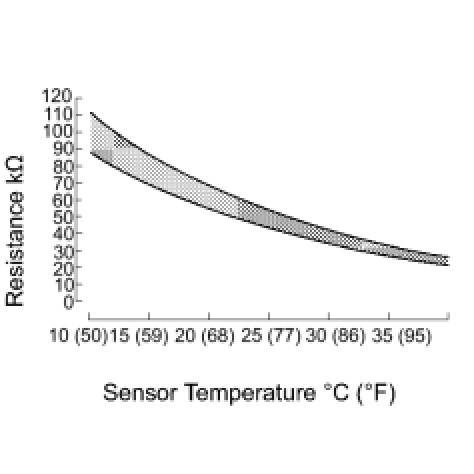

HINT: The standard varies according to the sensor temperature. If the results are not as specified, replace the hybrid vehicle transaxle assembly.
