Fail-Safe Chart

HYBRID TRANSMISSION / TRANSAXLE: ELECTRONIC SHIFT LEVER SYSTEM: FAIL-SAFE CHART

FAIL-SAFE CHART

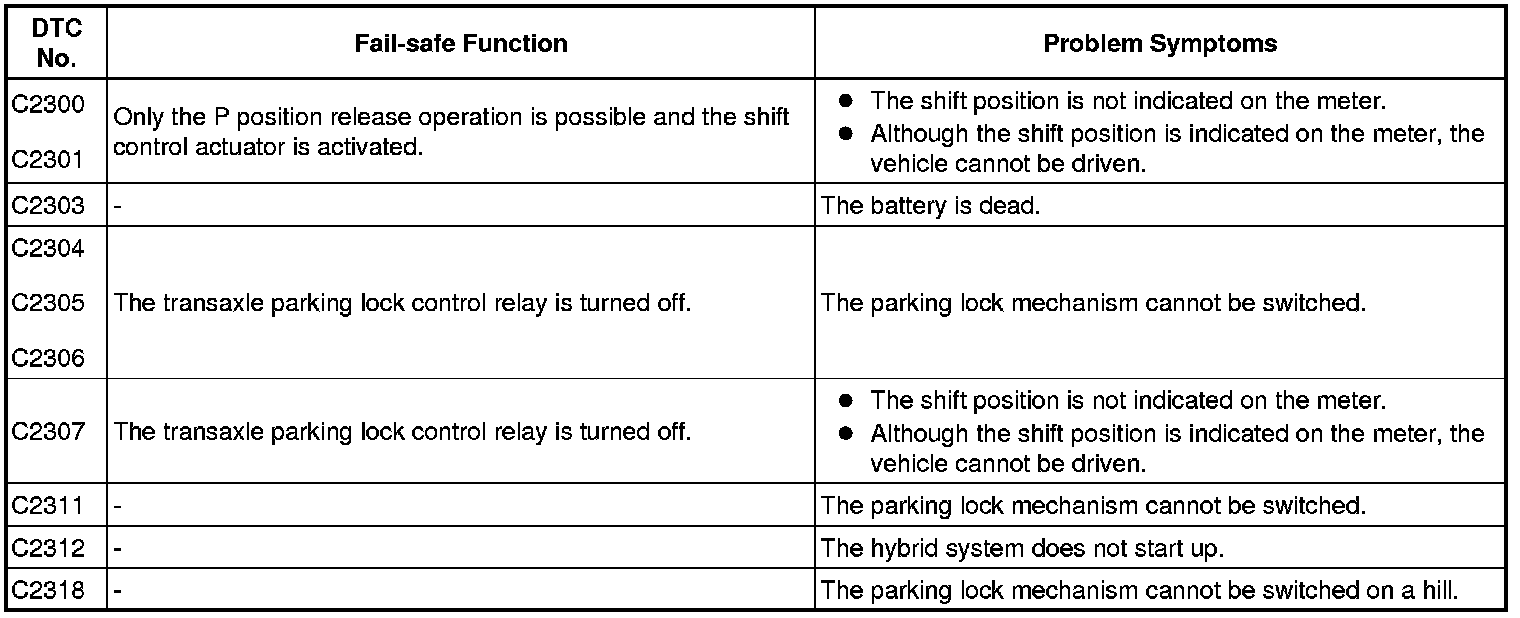

If the transmission control ECU detects a malfunction, the fail-safe functions shown in the table below are activated.
