Window Defogger System

WINDSHIELD / WINDOWGLASS: WINDOW DEFOGGER SYSTEM: INSPECTION

INSPECTION

1. CHECK STEERING PAD SWITCH

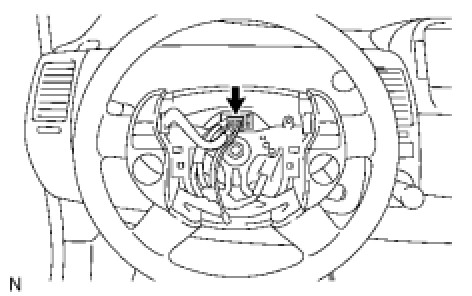

(a) Remove the horn button Removal.

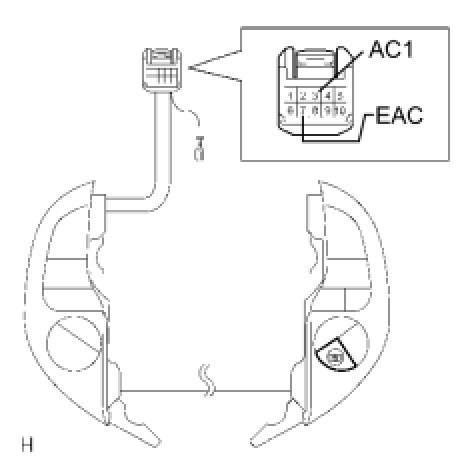

(b) Disconnect the connector as shown in the illustration.





(c) Measure the resistance of the switch.

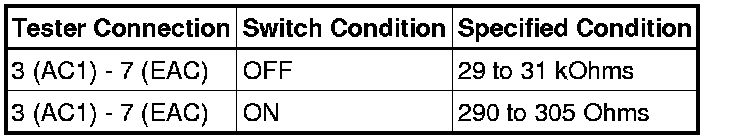

Standard resistance:





If the result is not as specified, replace the switch.
