Power Window Master Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH: INSPECTION

INSPECTION

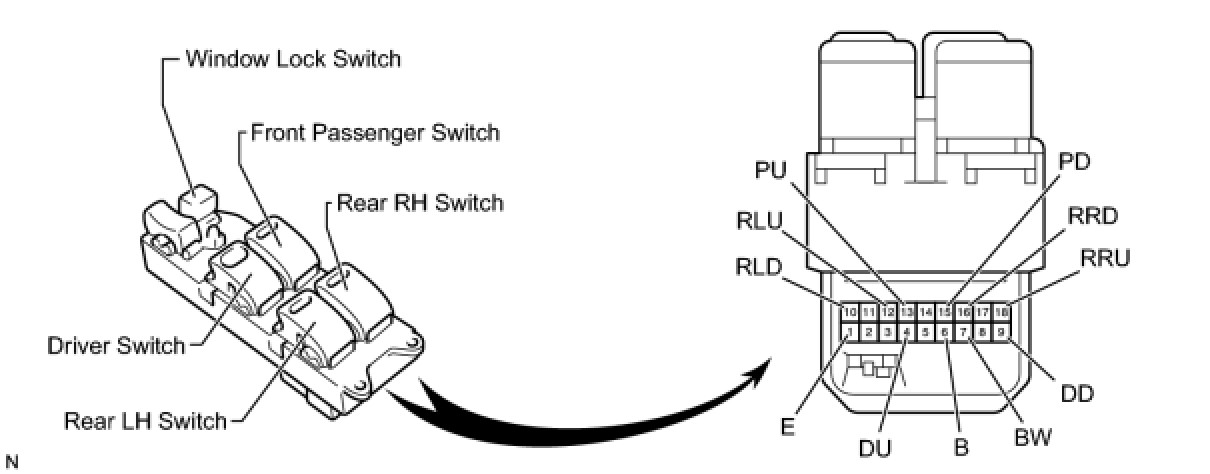

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
(a) Measure the resistance of the switch when the switch is operated.





Standard resistance:

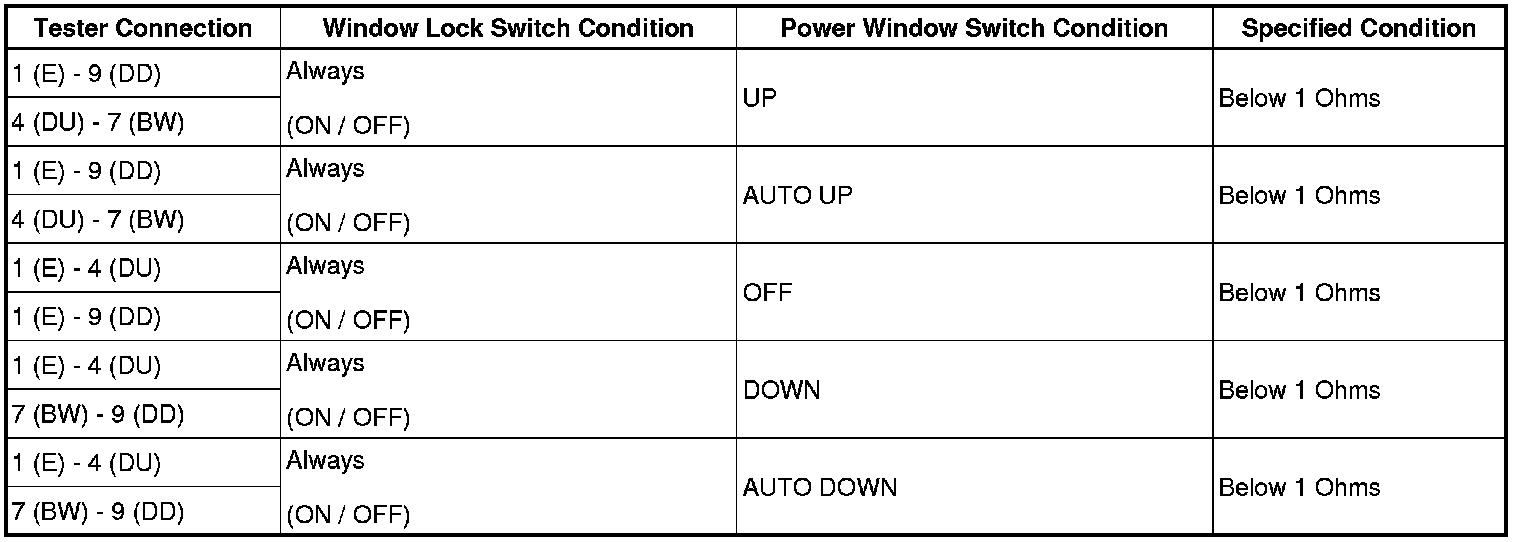

Driver switch






Passenger switch

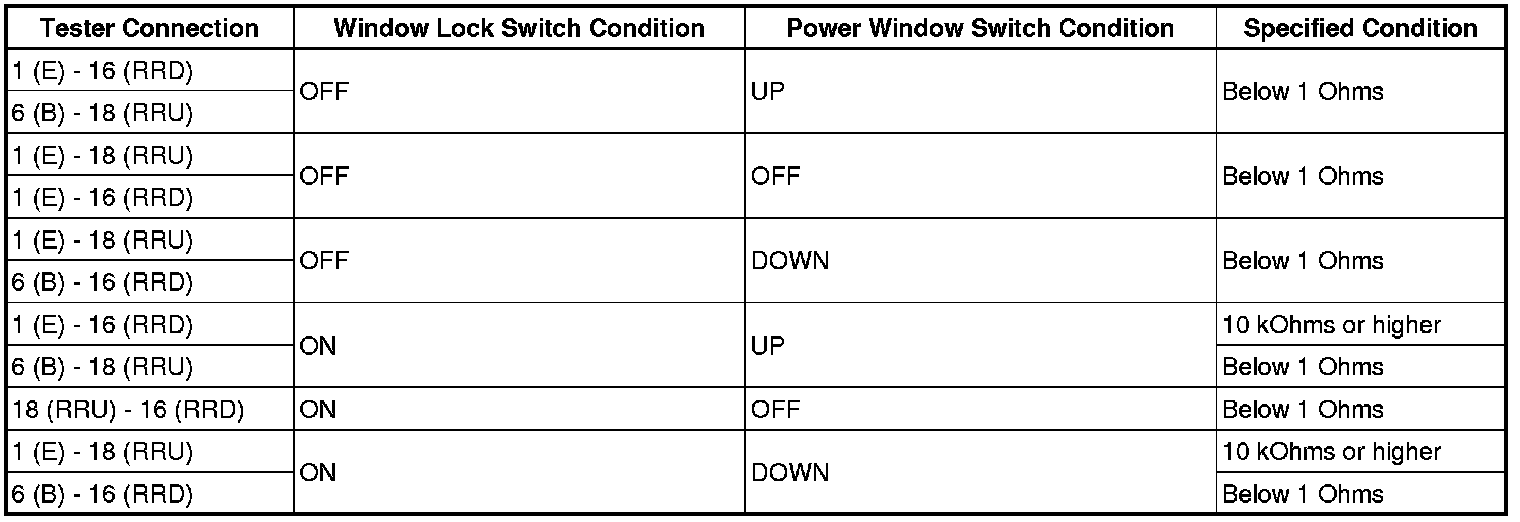

Rear LH switch






Rear RH switch





- If the result is not as specified, replace the master switch assembly.

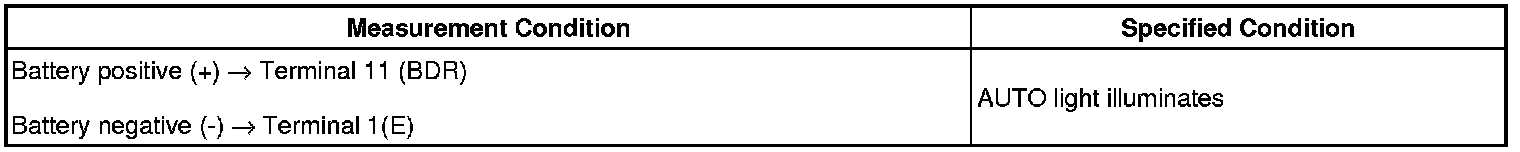

(b) Apply battery voltage to the master switch and check that the AUTO light illuminates.





OK:





- If the result is not as specified, replace the master switch assembly.
