Auto Up / Down Function Does Not Operate

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Auto Up / Down Function does not Operate

Auto Up / Down Function does not Operate

DESCRIPTION

If the AUTO UP / DOWN function does not operate, the cause may be one or more of the following:

- The recorded power window fully closed position, which is stored in the power window regulator master switch, was erased as a result of: 1) the PWR H-fuse or the power window relay (PWR) being replaced; or 2) the battery cable and the master switch's connector being disconnected.
- The master switch has a malfunction.
- The pulse sensors in the driver side power window regulator motor have a malfunction.
- The wiring between the master switch and the driver side power window regulator motor is open or short circuited.

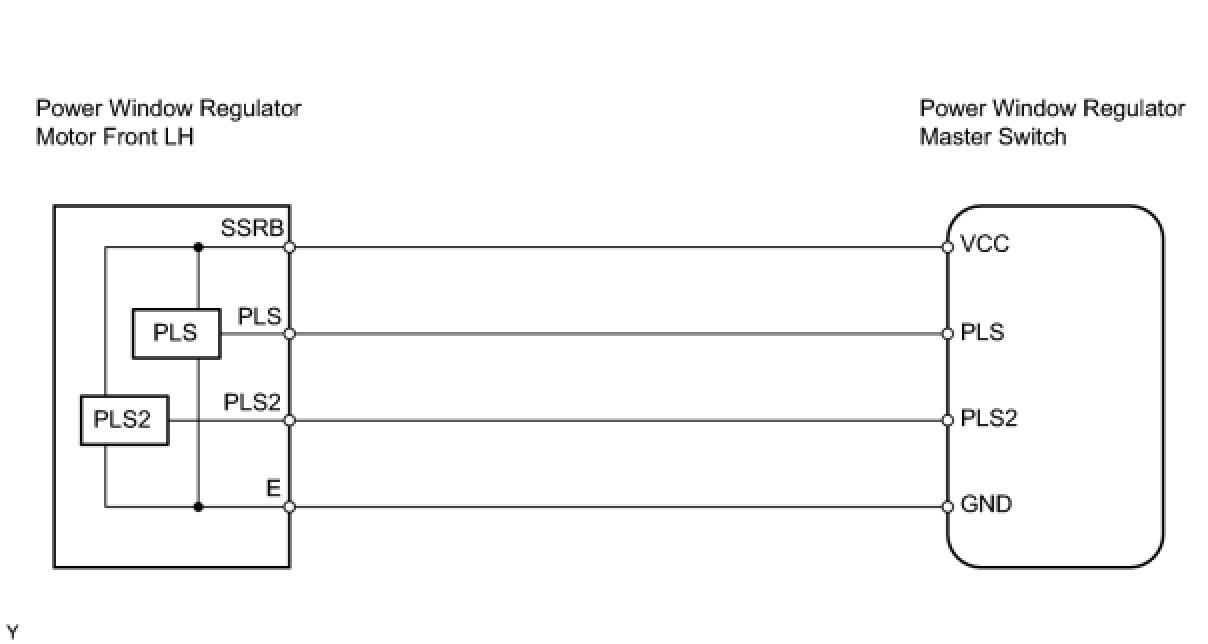

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK MANUAL UP / DOWN FUNCTION (for Driver Side)
(a) Check if the manual UP / DOWN function operates normally.
OK :
Manual UP / DOWN function operates normally.
NG -- OTHER PROBLEM
OK -- Continue to next step.

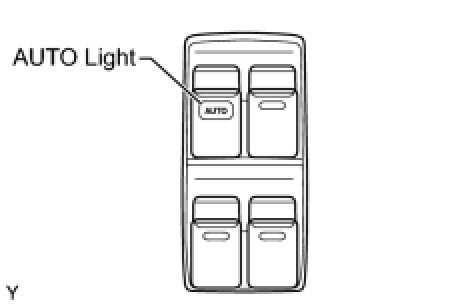

2. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (for AUTO Light)




(a) Turn the power switch ON (IG).
(b) Operate the master switch assembly's driver side switch for 2 seconds or more.

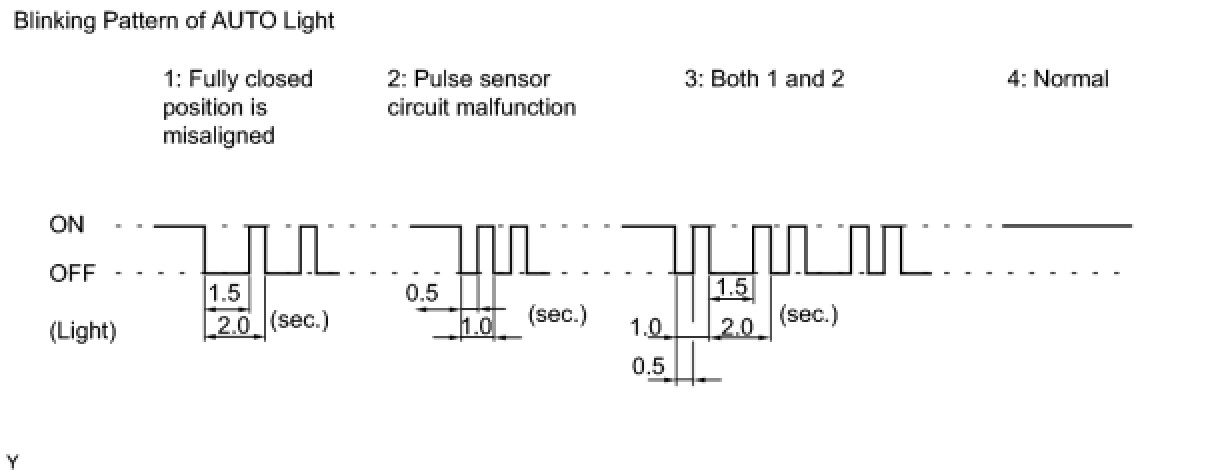

(c) Check the blinking pattern of the AUTO light. Compare the blinking pattern with the illustration below.

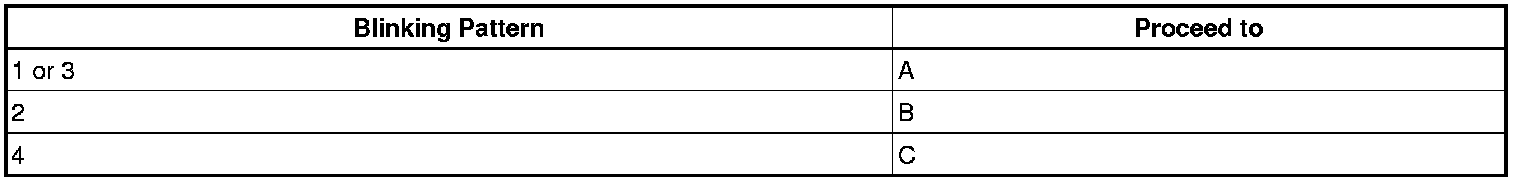

Result





C -- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
B -- CHECK WIRE HARNESS (MASTER SWITCH - REGULATOR MOTOR)
A -- Continue to next step.

3. RESET POWER WINDOW REGULATOR MOTOR ASSEMBLY FRONT LH
(a) Check if the power window operates normally after the reset.
OK:
Power window operates normally.
OK -- END
NG -- Continue to next step.

4. CHECK WIRE HARNESS (MASTER SWITCH - REGULATOR MOTOR)

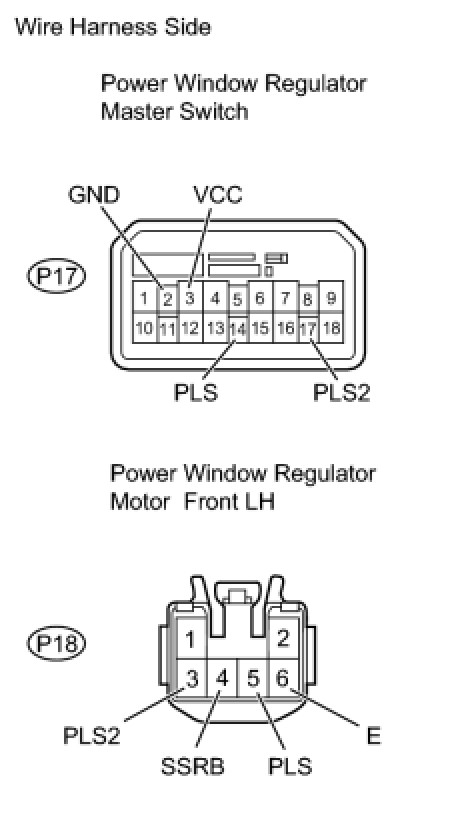

(a) Disconnect the P17 switch connector.
(b) Disconnect the P18 motor connector.
(c) Measure the resistance of the wire harness side connectors.

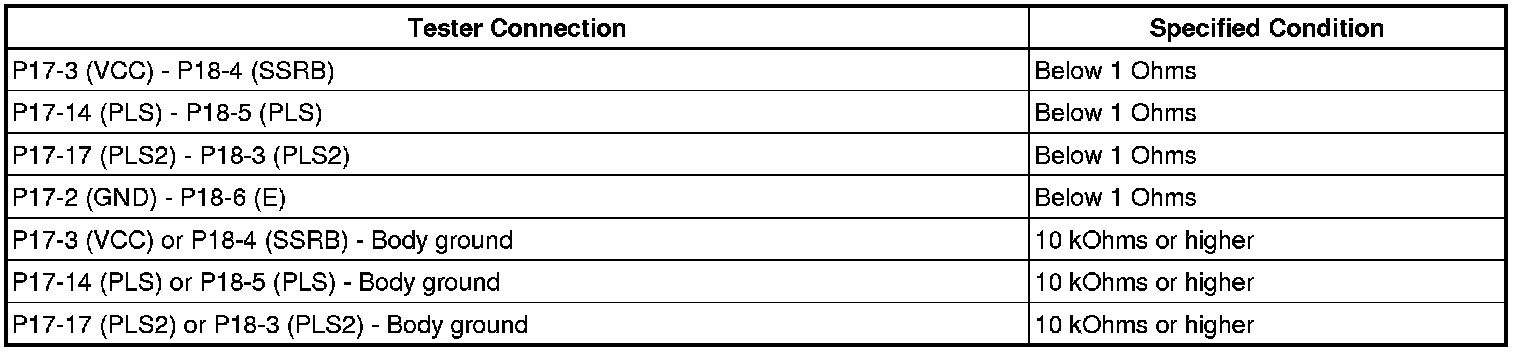

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY FRONT LH
