Installation

WINDSHIELD / WINDOWGLASS: QUARTER WINDOW GLASS: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
- A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.

1. INSTALL QUARTER WINDOW ASSEMBLY LH

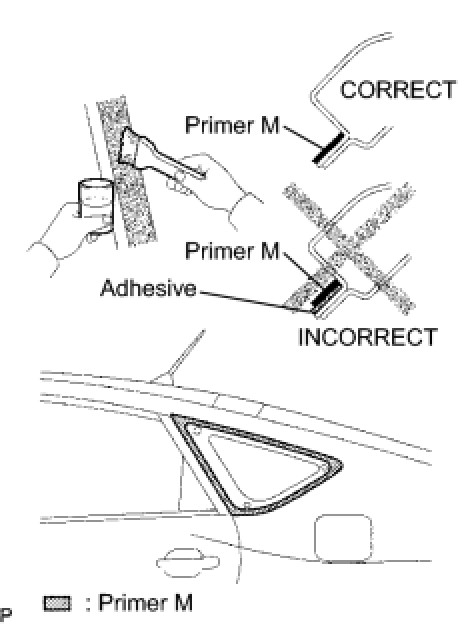

(a) Using a brush or sponge, apply primer M to the exposed part of the vehicle body.
NOTICE:
- Allow the primer coating to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.

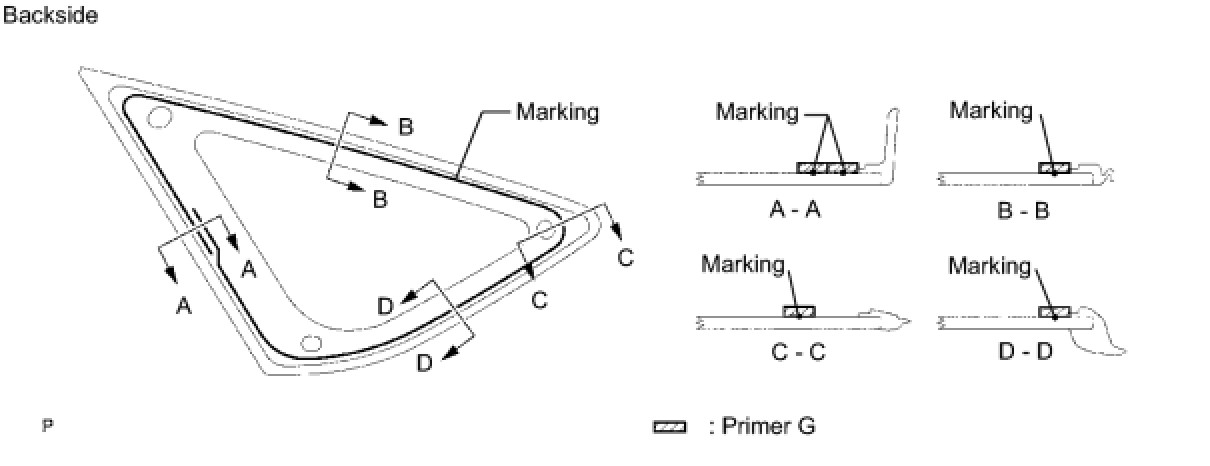

(b) Using a brush or sponge, apply primer G to the contact surface of the glass.




HINT: If primer is applied to an area that is specified, wipe off the primer with white gasoline before it dries.
NOTICE:
- Allow the primer to dry for 3 minutes or more.
- Throw away any leftover primer.
- Do not apply too much primer.

(c) Apply adhesive to the quarter window glass.
Adhesive:
Toyota Genuine Windshield Glass Adhesive or Equivalent
(1) Cut off the tip of the cartridge nozzle as shown in the illustration.

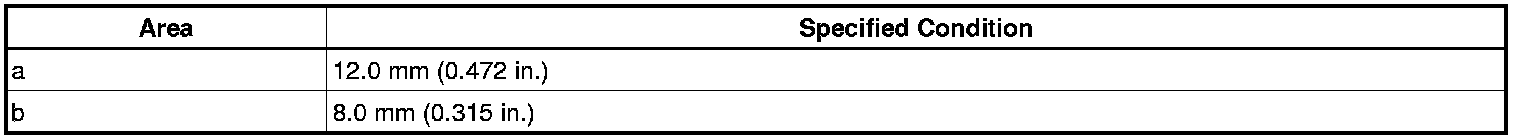

Standard measurement:





HINT: After cutting off the tip, use all adhesive within the time written in the table below.

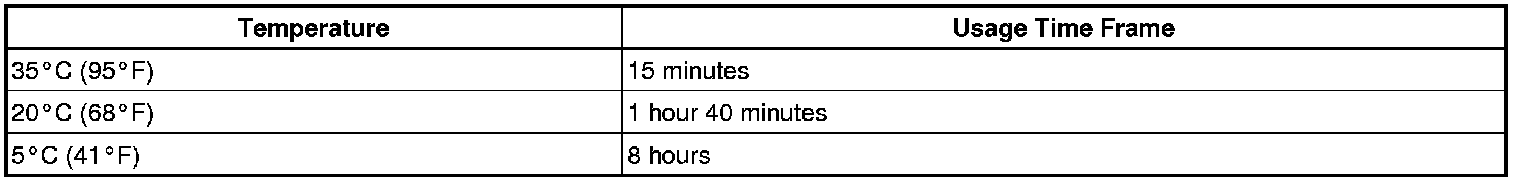

Usage time frame:





(2) Load the sealer gun with the cartridge.

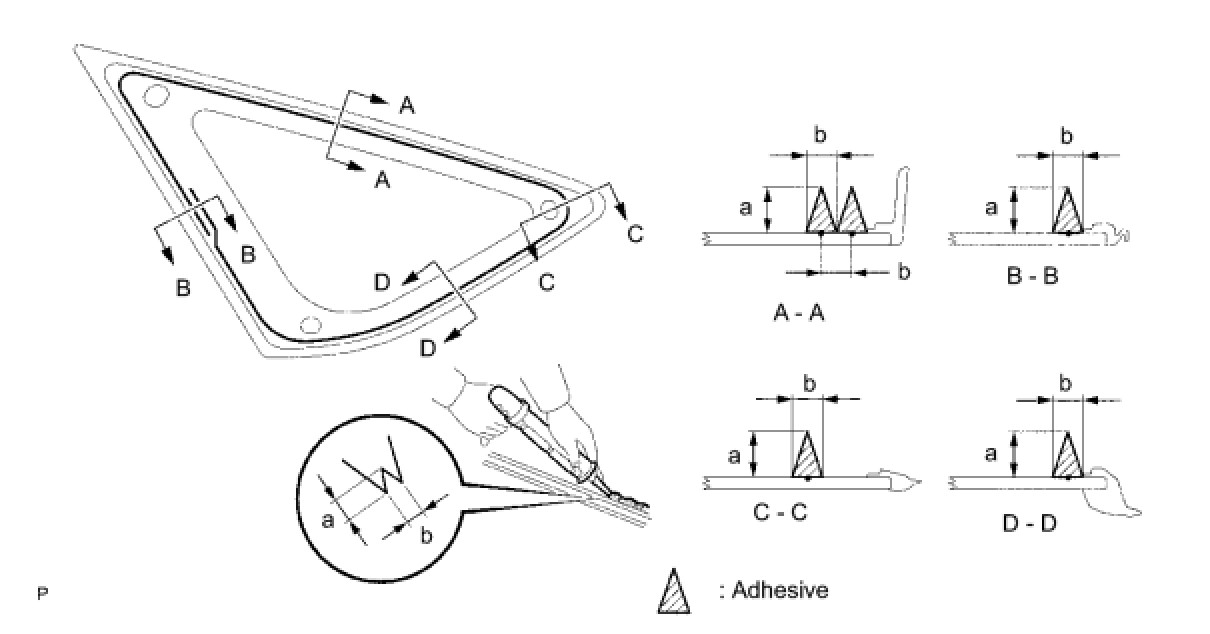

(3) Apply adhesive to the quarter window glass as shown in the illustration.
(d) Install the quarter window glass to the vehicle body.
(1) Hold the quarter window glass in place securely with protective tape or equivalent until the adhesive hardens.
NOTICE:
- Allow the primer coating to dry for 3 minutes or more.
- Check that the clips are attached to the body correctly.
- Check the clearance between the body and glass.
(2) Lightly press the front surface of the glass to ensure a close fit.

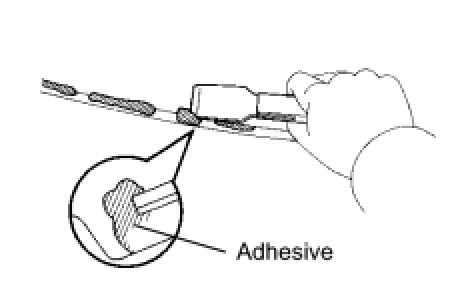

(3) Using a scraper, remove any excess or protruding adhesive.
HINT: Apply adhesive onto the glass rim.
NOTE: Do not drive the vehicle within the time written in the table below.

Minimum time:






2. INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH Installation
3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH Installation
4. INSTALL REAR DECK TRIM COVER Installation
5. INSTALL REAR NO. 1 FLOOR BOARD Installation
6. INSTALL DECK FLOOR BOX LH
7. INSTALL REAR DECK FLOOR BOX
8. INSTALL REAR NO. 4 FLOOR BOARD
9. INSTALL REAR NO. 3 FLOOR BOARD
10. INSTALL REAR NO. 2 FLOOR BOARD
11. INSTALL TONNEAU COVER ASSEMBLY
12. INSTALL BACK DOOR WEATHERSTRIP
13. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
14. INSTALL REAR SIDE SEATBACK FRAME LH Installation
15. INSTALL REAR SEAT CUSHION ASSEMBLY Installation
16. CHECK FOR LEAKS AND REPAIR
(a) Conduct a leak test after the adhesive has completely hardened.
(b) Seal any leaks with auto glass sealer.
