Removal

WINDSHIELD / WINDOWGLASS: QUARTER WINDOW GLASS: REMOVAL

REMOVAL
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. REMOVE REAR SEAT CUSHION ASSEMBLY Removal
2. REMOVE REAR SIDE SEATBACK FRAME LH Removal
3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
4. REMOVE BACK DOOR WEATHERSTRIP
5. REMOVE TONNEAU COVER ASSEMBLY
6. REMOVE REAR NO. 2 FLOOR BOARD
7. REMOVE REAR NO. 3 FLOOR BOARD
8. REMOVE REAR NO. 4 FLOOR BOARD
9. REMOVE REAR DECK FLOOR BOX
10. REMOVE DECK FLOOR BOX LH
11. REMOVE REAR NO. 1 FLOOR BOARD Removal
12. REMOVE REAR DECK TRIM COVER Removal
13. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH Removal
14. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH Removal
15. REMOVE QUARTER WINDOW ASSEMBLY LH

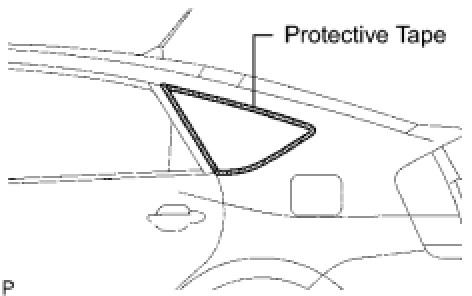

(a) Apply protective tape to the outer surface of the vehicle body to prevent scratches.
NOTE: When removing the quarter window glass from the vehicle, be careful not to damage the vehicle's paint or interior/exterior ornaments.

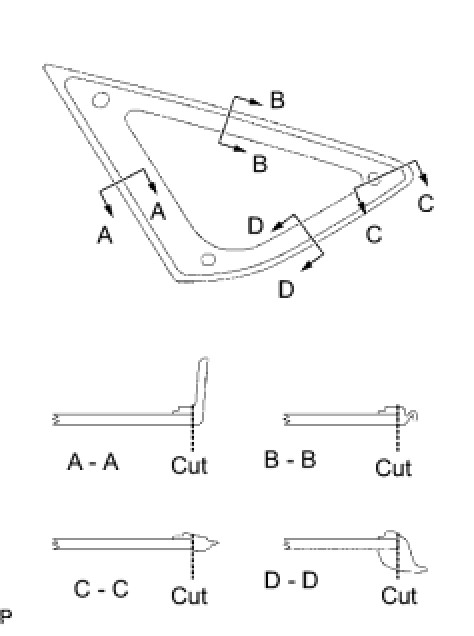

(b) Using a knife, cut off the moulding as shown in the illustration.
NOTE: Be careful not to damage the vehicle body with the knife.

(c) Remove the remaining moulding.
HINT: Make a partial cut in the moulding. Then pull and remove it by hand.

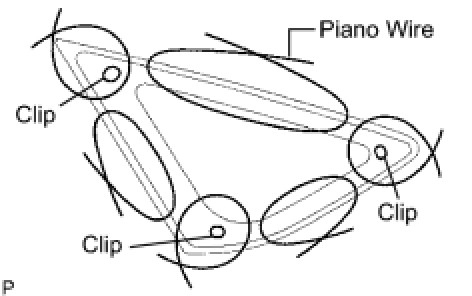

(d) From the interior, insert a piano wire between the vehicle body and the quarter window glass as shown in the illustration.
(e) Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
(f) Cut through the adhesive by pulling the piano wire around the quarter window glass.
NOTE: Leave as much adhesive on the vehicle body as possible when removing the quarter window glass.

(g) Using suction cups, remove the quarter window glass.





16. CLEAN VEHICLE BODY
(a) Clean and shape the contact surface of the vehicle body.
(1) On the contact surface of the vehicle body, use a knife to cut away excess adhesive as shown in the illustration.
HINT: Leave as much adhesive on the vehicle body as possible.
NOTE: Be careful not to damage the vehicle body.
(2) Clean the contact surface of the vehicle body with cleaner.
HINT: Even if all the adhesive has been removed, clean the vehicle body.
