WIPER AND WASHER: FRONT WIPER RUBBER: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH sides.
- The procedures listed below are for the LH side.

1. INSTALL WIPER RUBBER

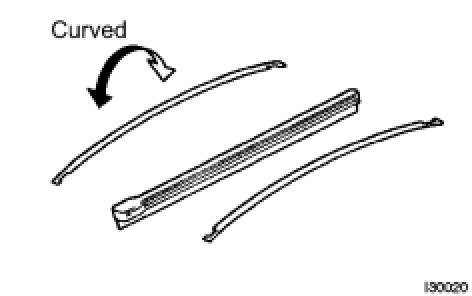

(a) Install the 2 packing plates to the rubber.
NOTE: Install the packing plates facing the proper direction.

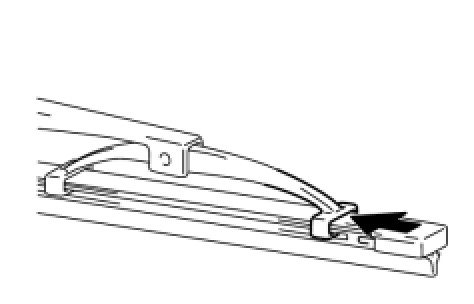

(b) Install the wiper rubber to the claw of the wiper blade in the direction indicated by the arrow in the illustration.





(c) Attach the head part (large side) of the wiper rubber to the rear end side claw of the wiper blade.





2. INSTALL FRONT WIPER BLADE

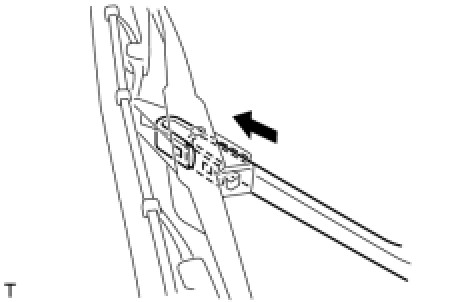

(a) Attach the claw to install the wiper blade.
