Installation

WIPER AND WASHER: REAR WIPER RUBBER: INSTALLATION

INSTALLATION

1. INSTALL REAR WIPER RUBBER

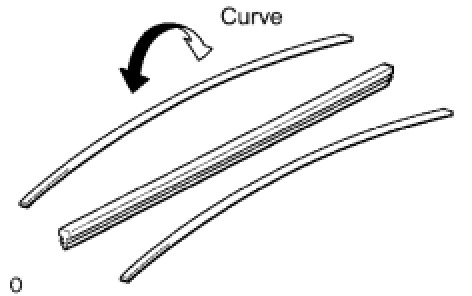

(a) Install the No. 1 and No. 2 rear wiper rubber backing plates as shown in the illustration.
NOTE: Install the backing plates in the correct direction.

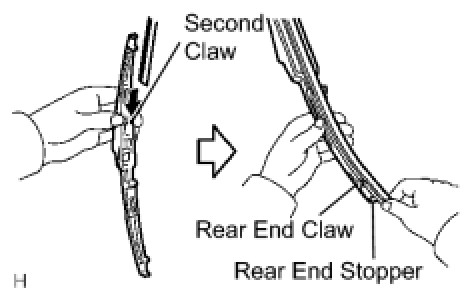

(b) Insert the rear wiper rubber from the front end of the rear wiper blade to the rear end through the second claw.
(c) After pushing the rear wiper rubber through the rear end side claw, allow it to stick out from the rear end stopper.

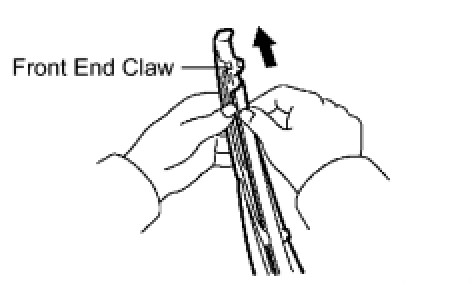

(d) Slide the rear wiper rubber through the front end claw.





2. INSTALL REAR WIPER BLADE

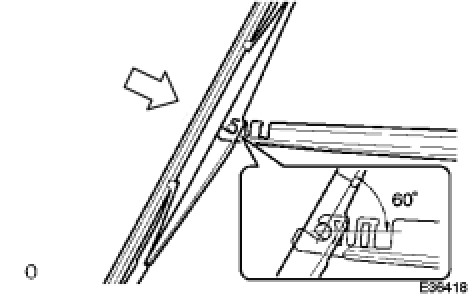

(a) Push the wiper blade straight toward the right side of the vehicle to install it to the wiper arm.
