Removal

WIPER AND WASHER: REAR WIPER RUBBER: REMOVAL

REMOVAL

1. REMOVE REAR WIPER BLADE

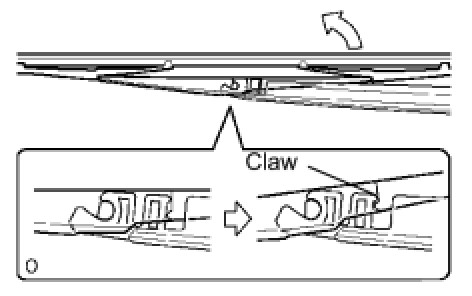

(a) Raise the rear wiper blade to the position shown in the illustration where the meshing of the claw disengages with a clicking sound.
NOTE: Be careful not to break the claw.

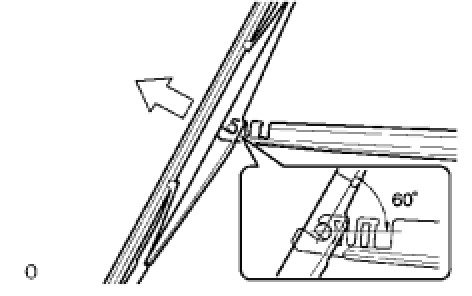

(b) Pull the rear wiper blade straight away from the rear wiper arm towards the left side of the vehicle.
NOTE: Do not fold the rear wiper arm with the rear wiper blade removed from it.

2. REMOVE REAR WIPER RUBBER

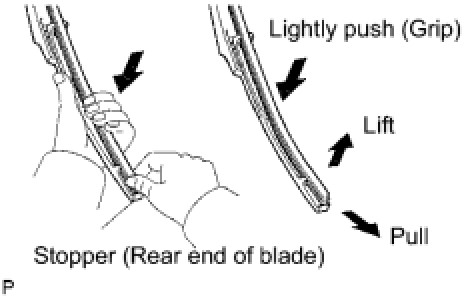

(a) Pull the end of the wiper rubber protruding from the blade stopper as shown in the illustration.
NOTE: Do not pull out the wiper rubber forcibly. If you do, the backing plates will be deformed or the blade claws will be damaged.
HINT: Lightly pushing the rubber from the ends towards the middle will allow it to be removed more easily.
